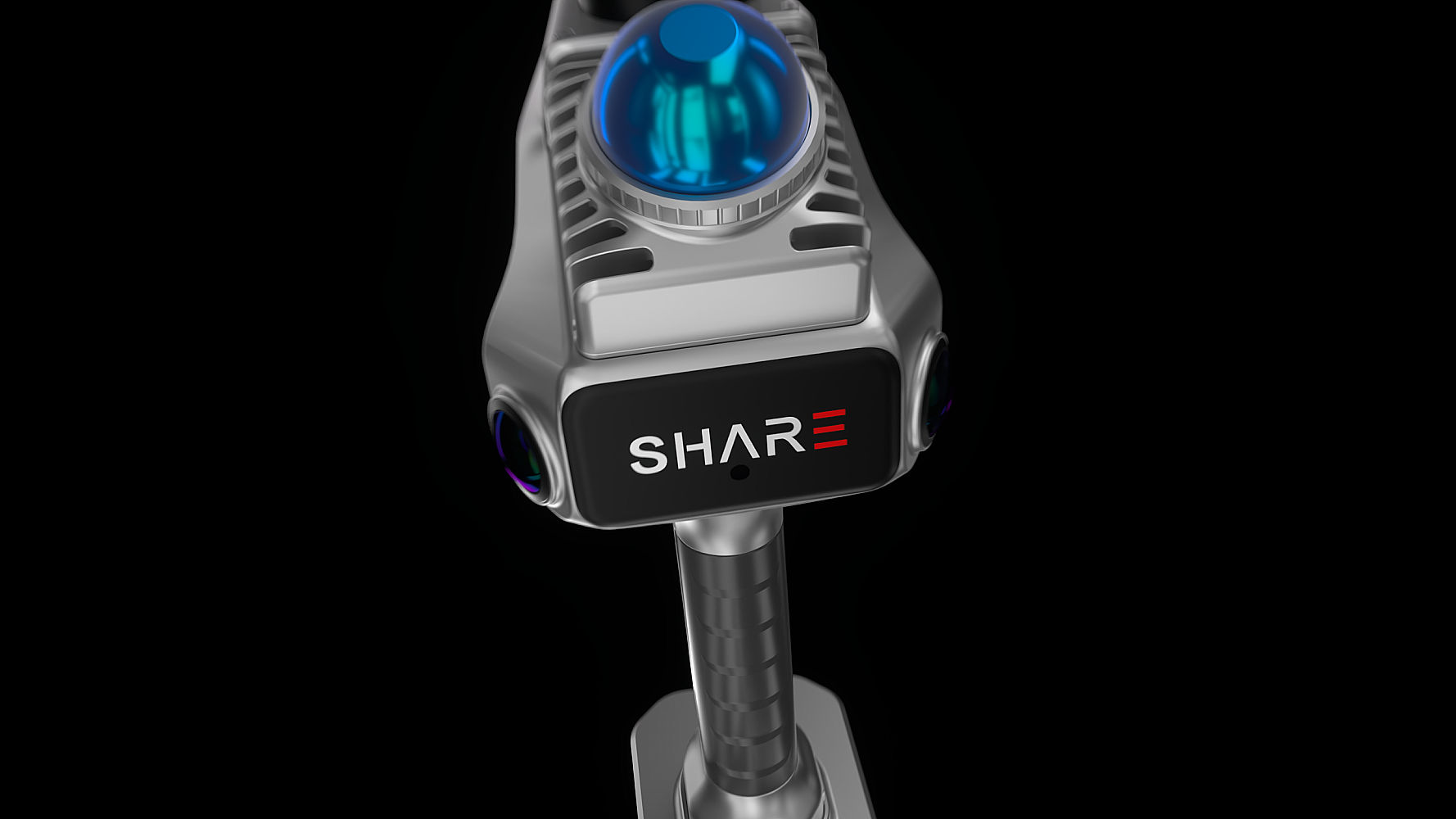

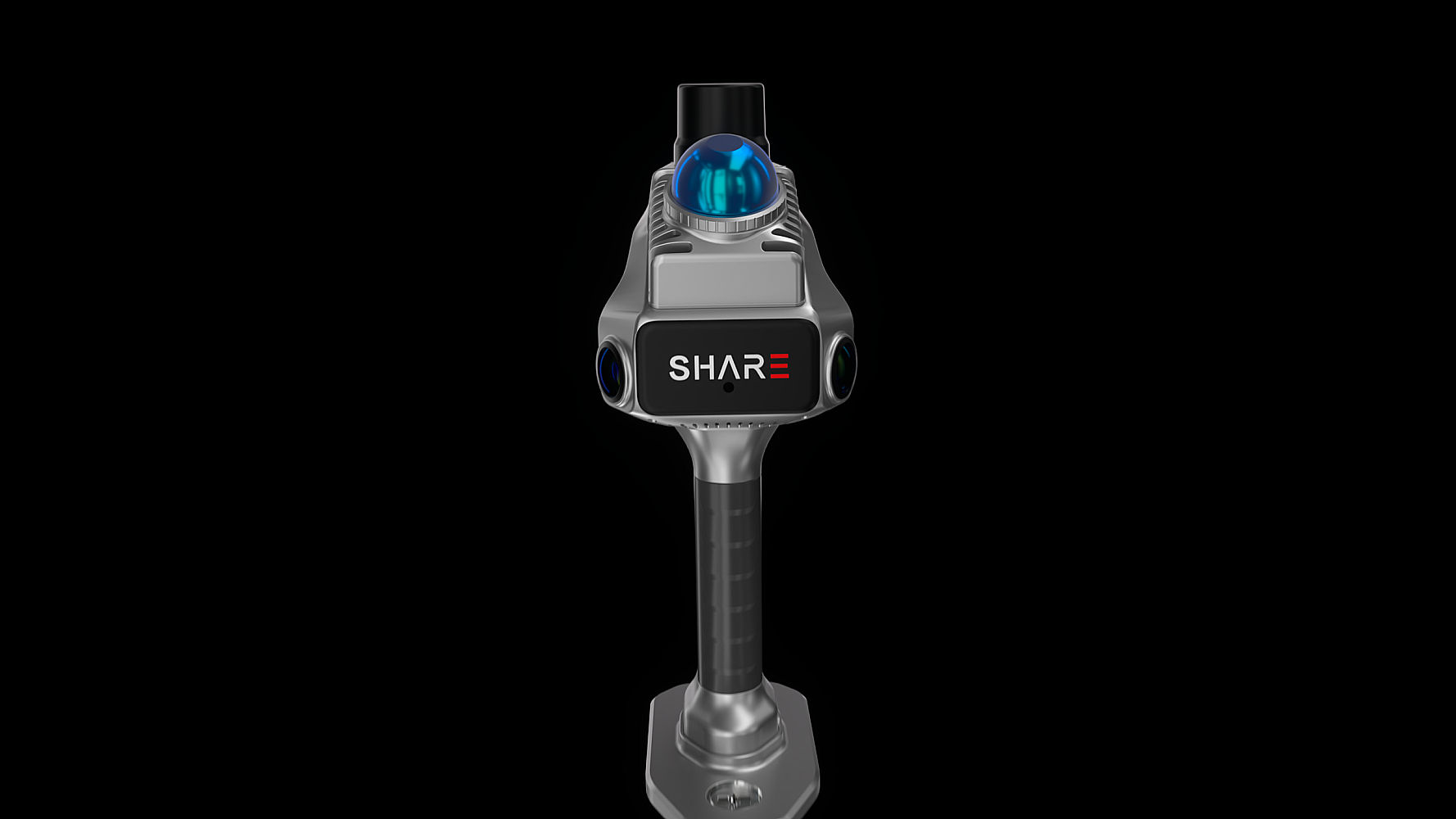

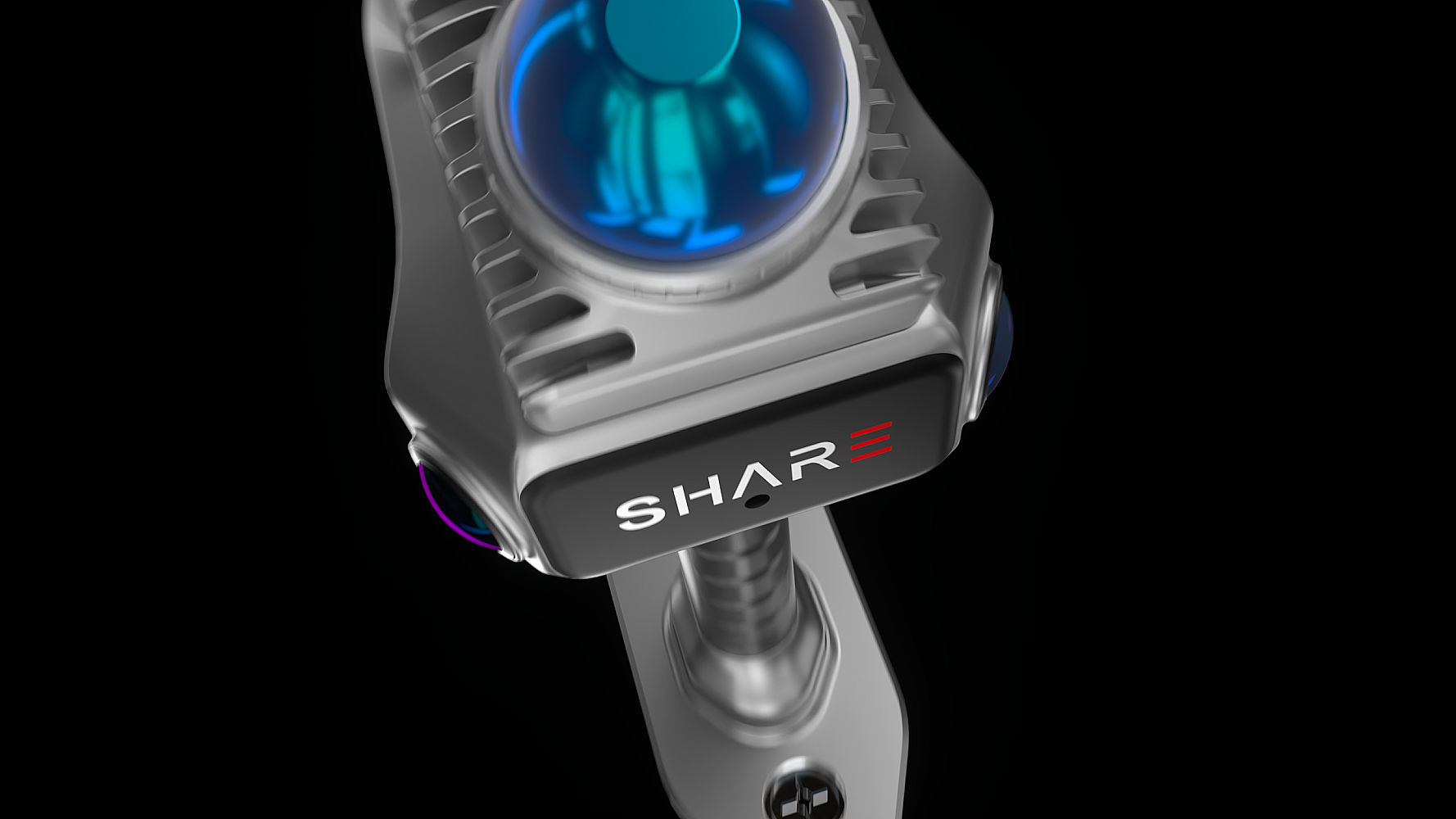

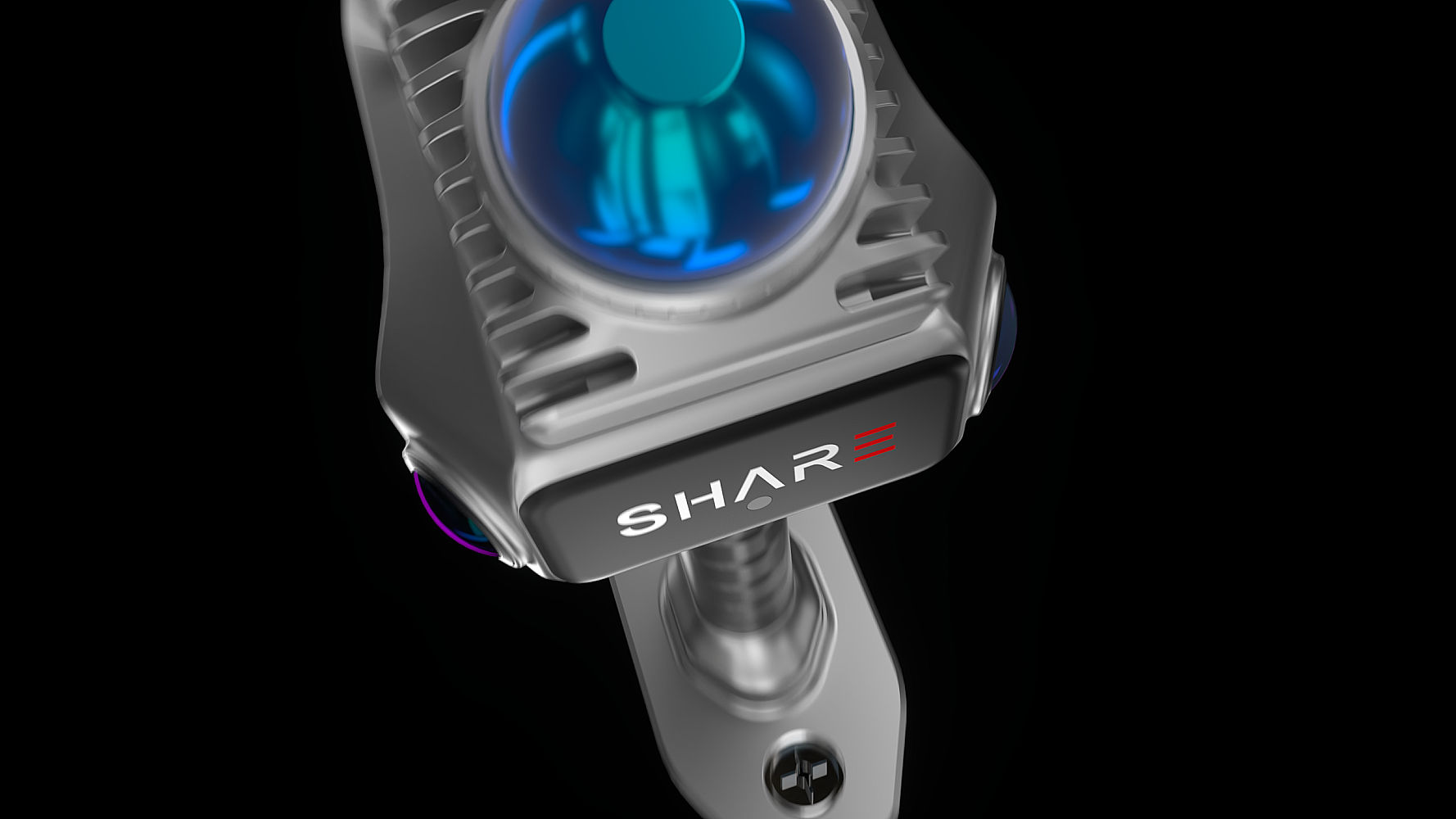

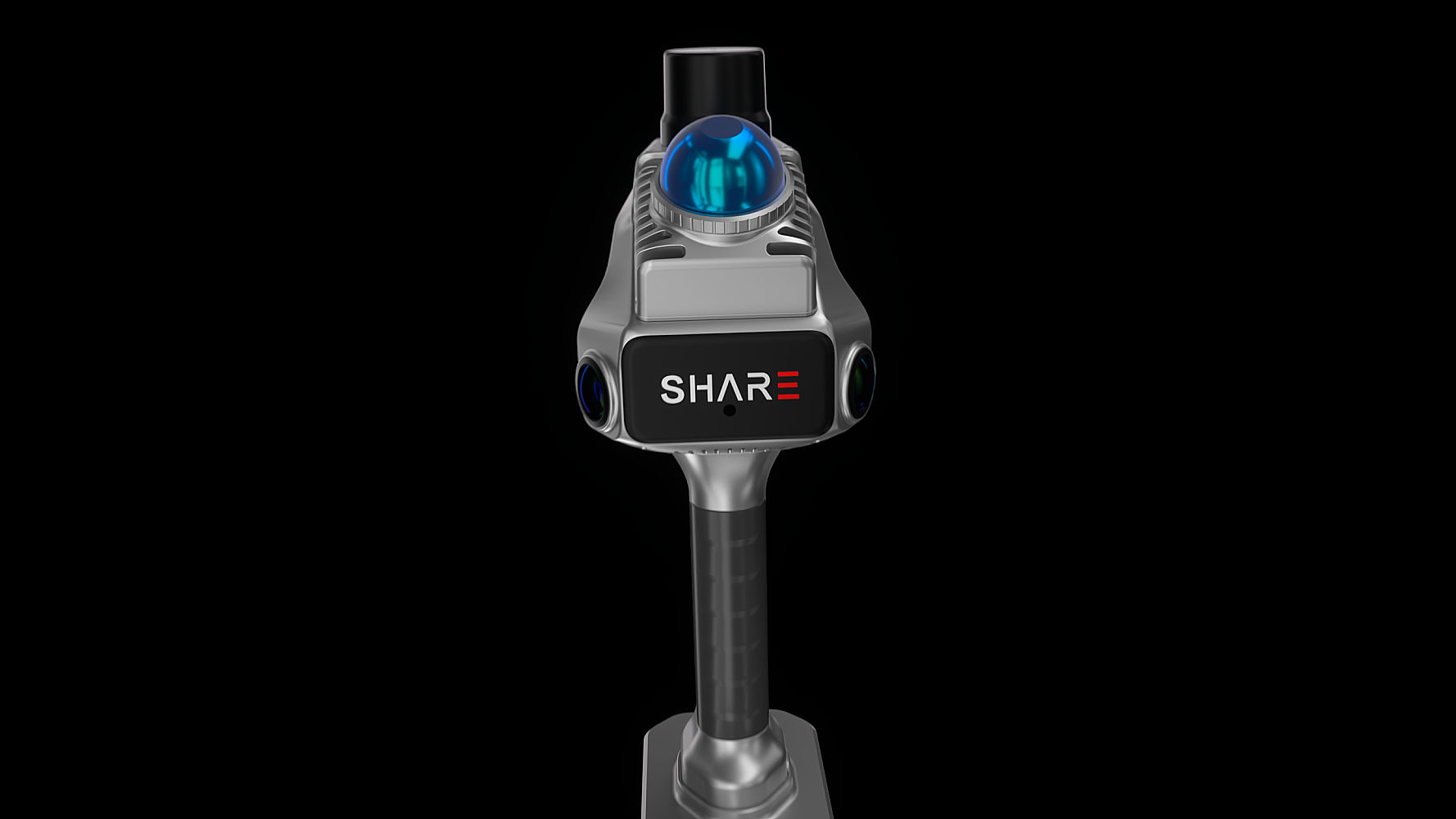

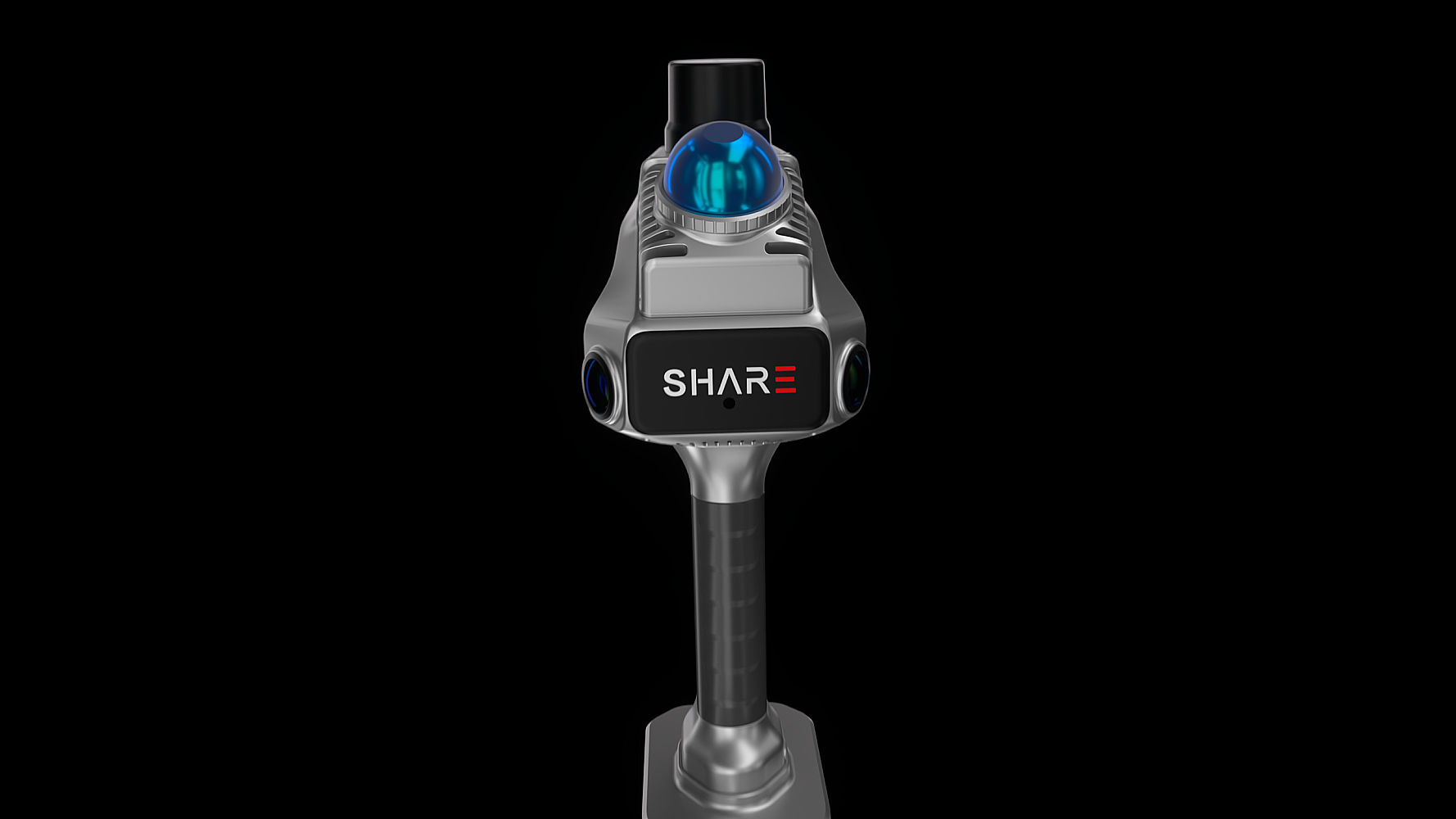

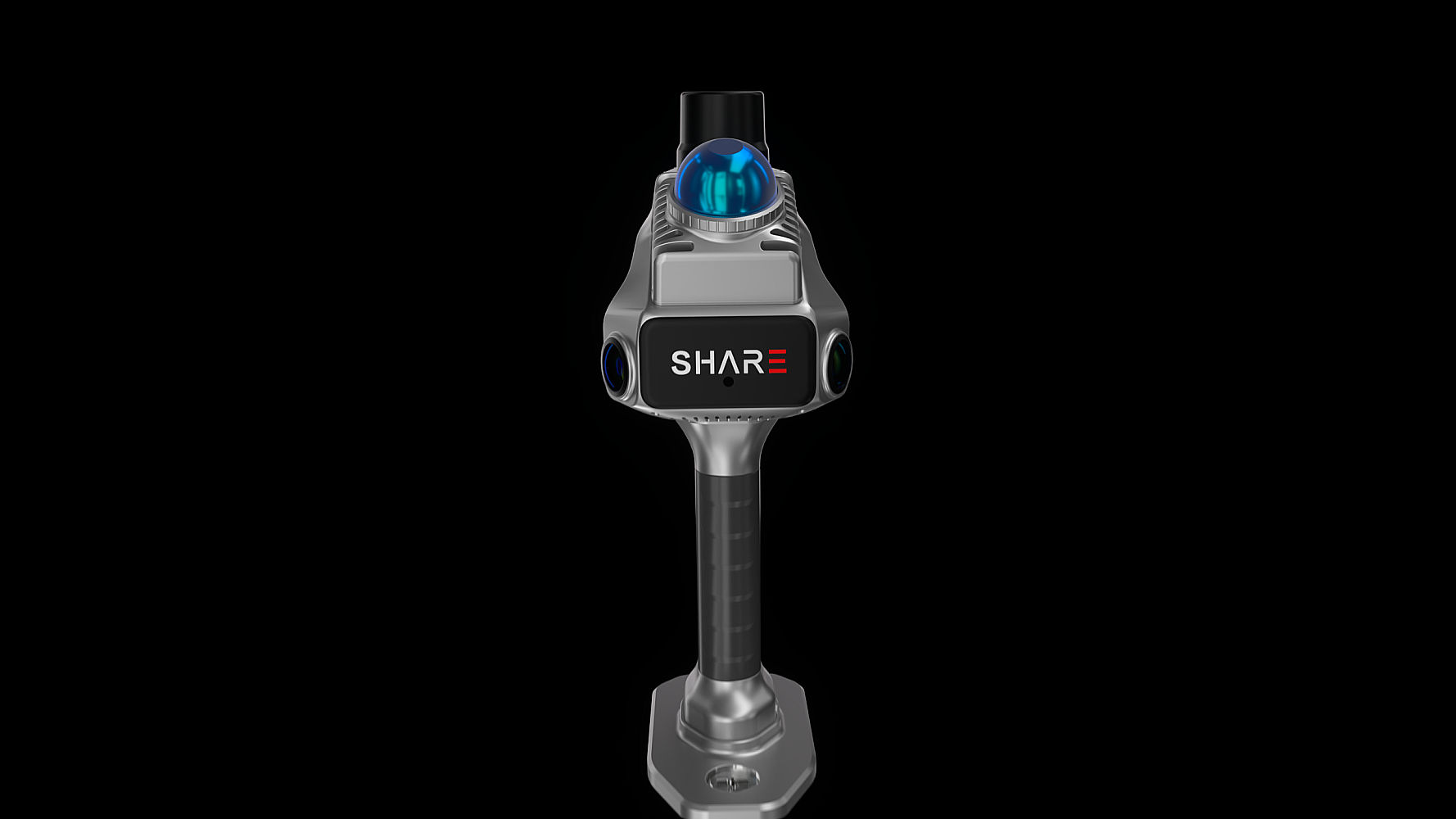

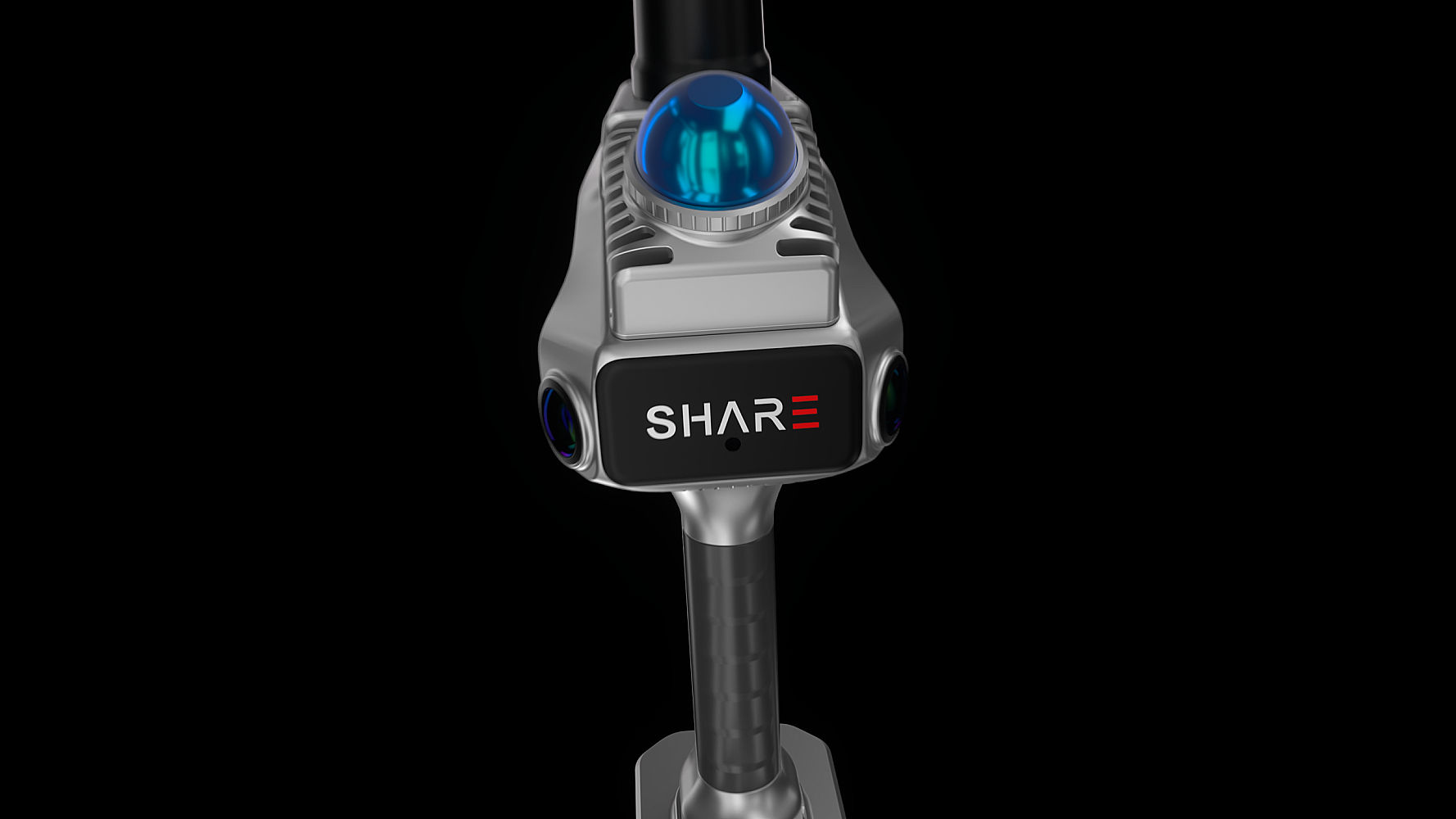

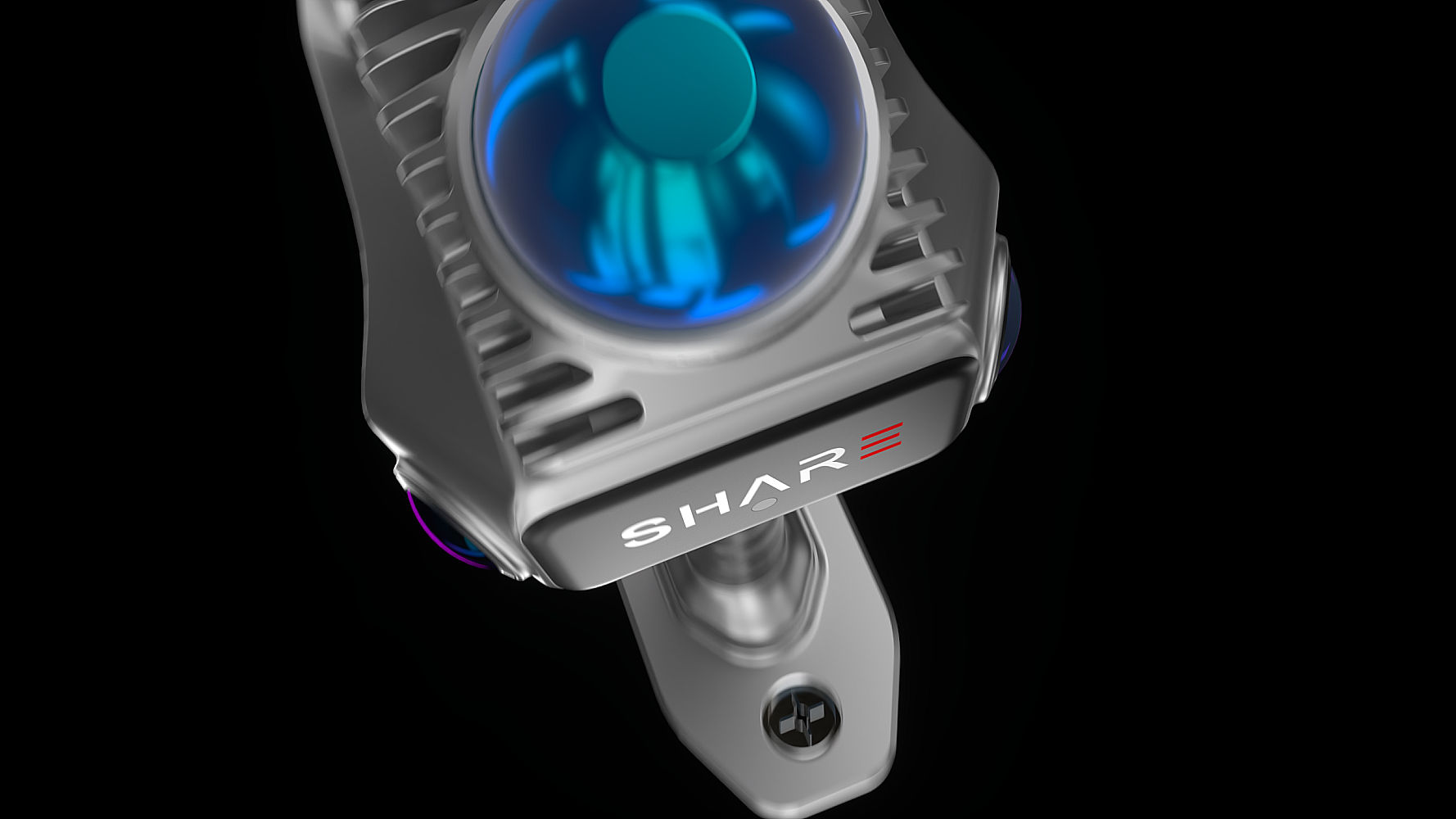

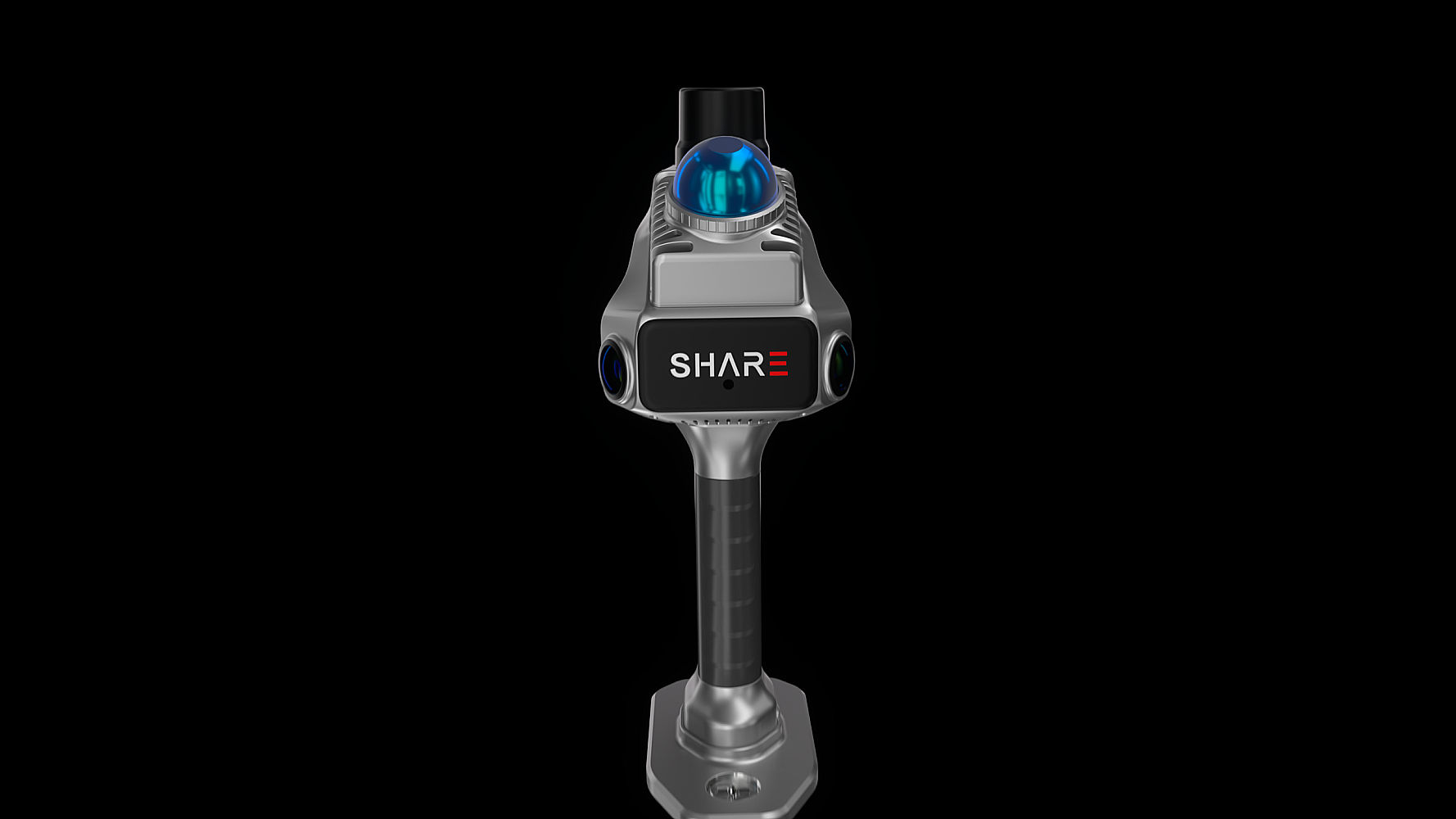

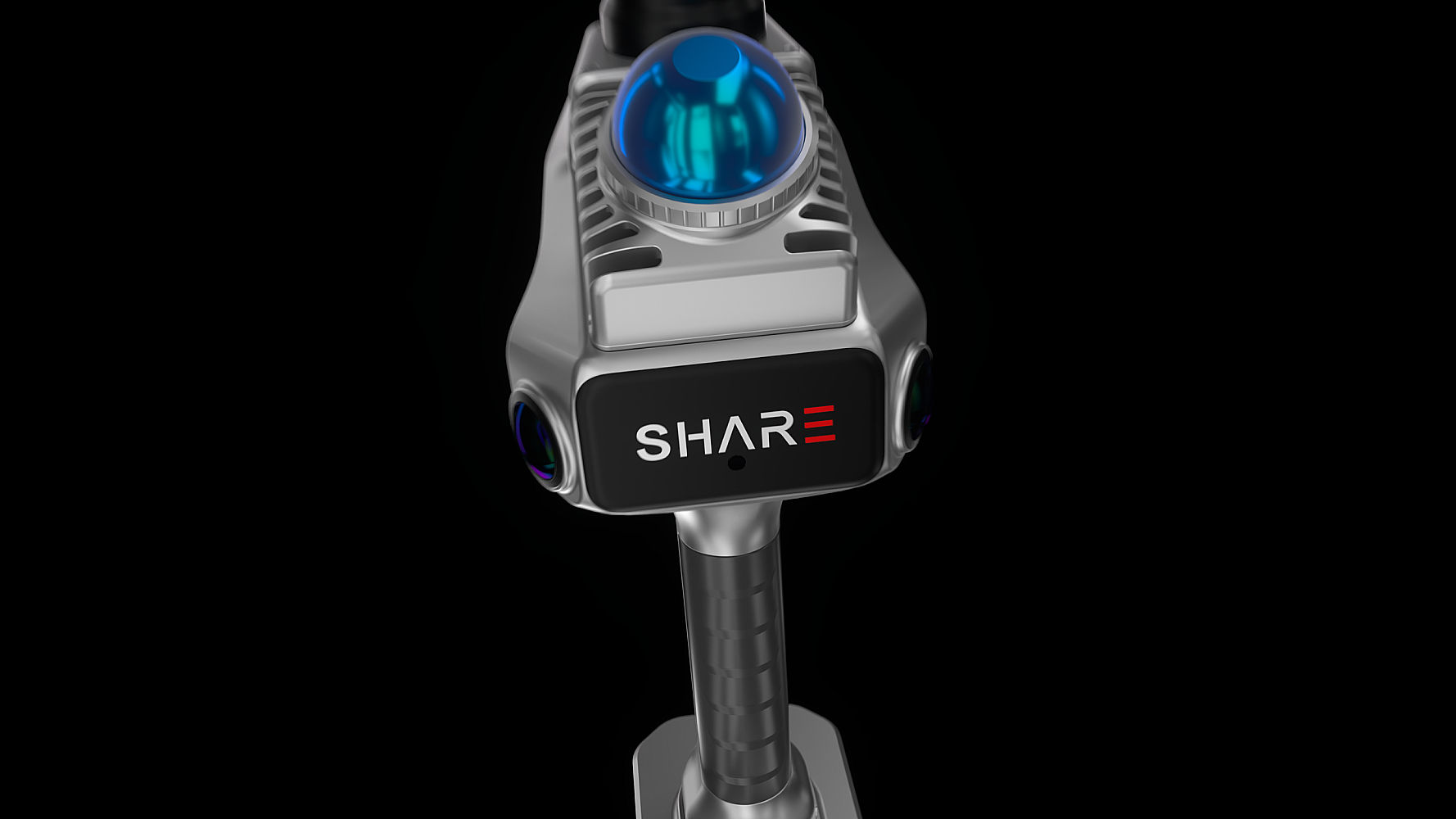

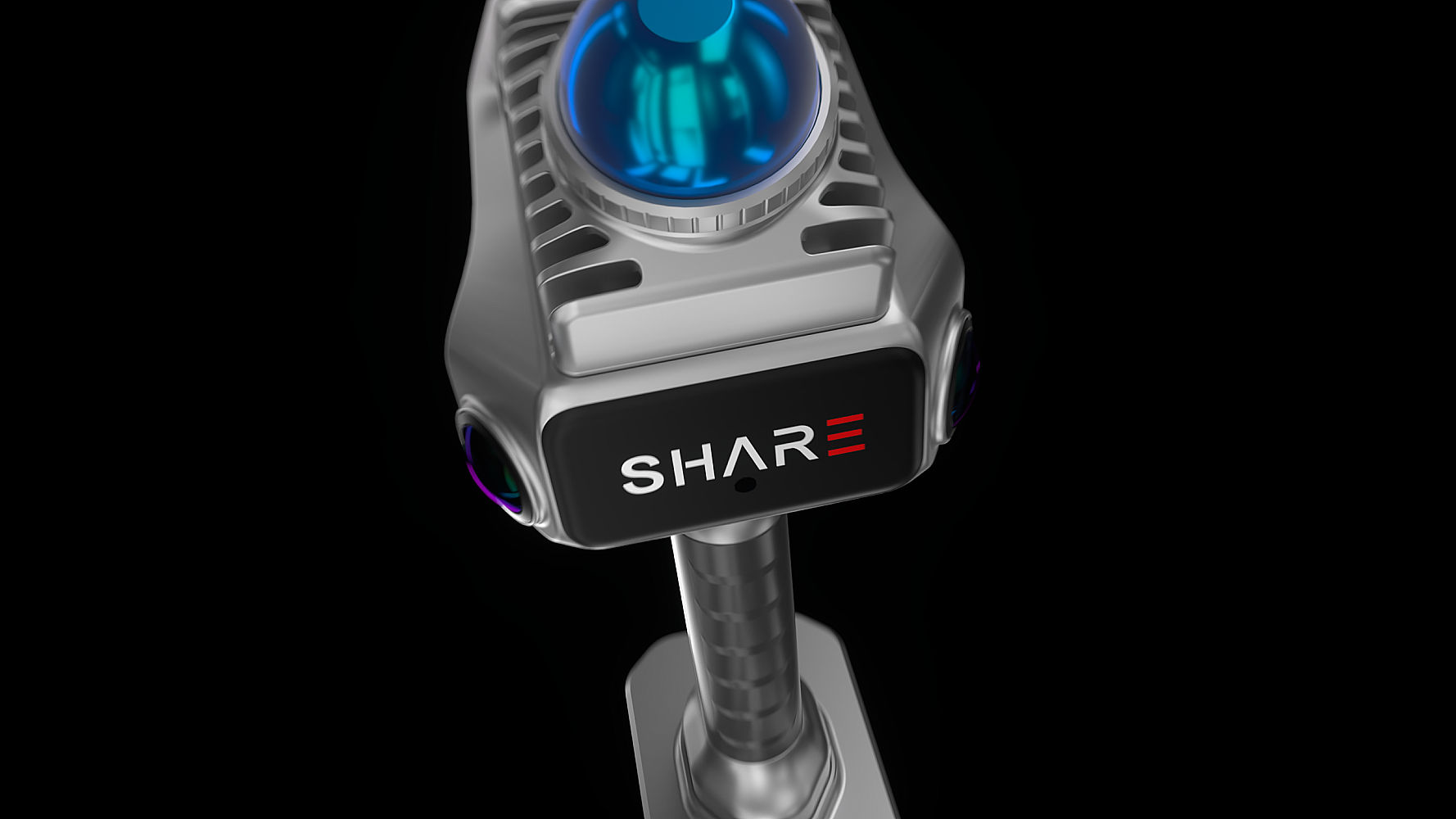

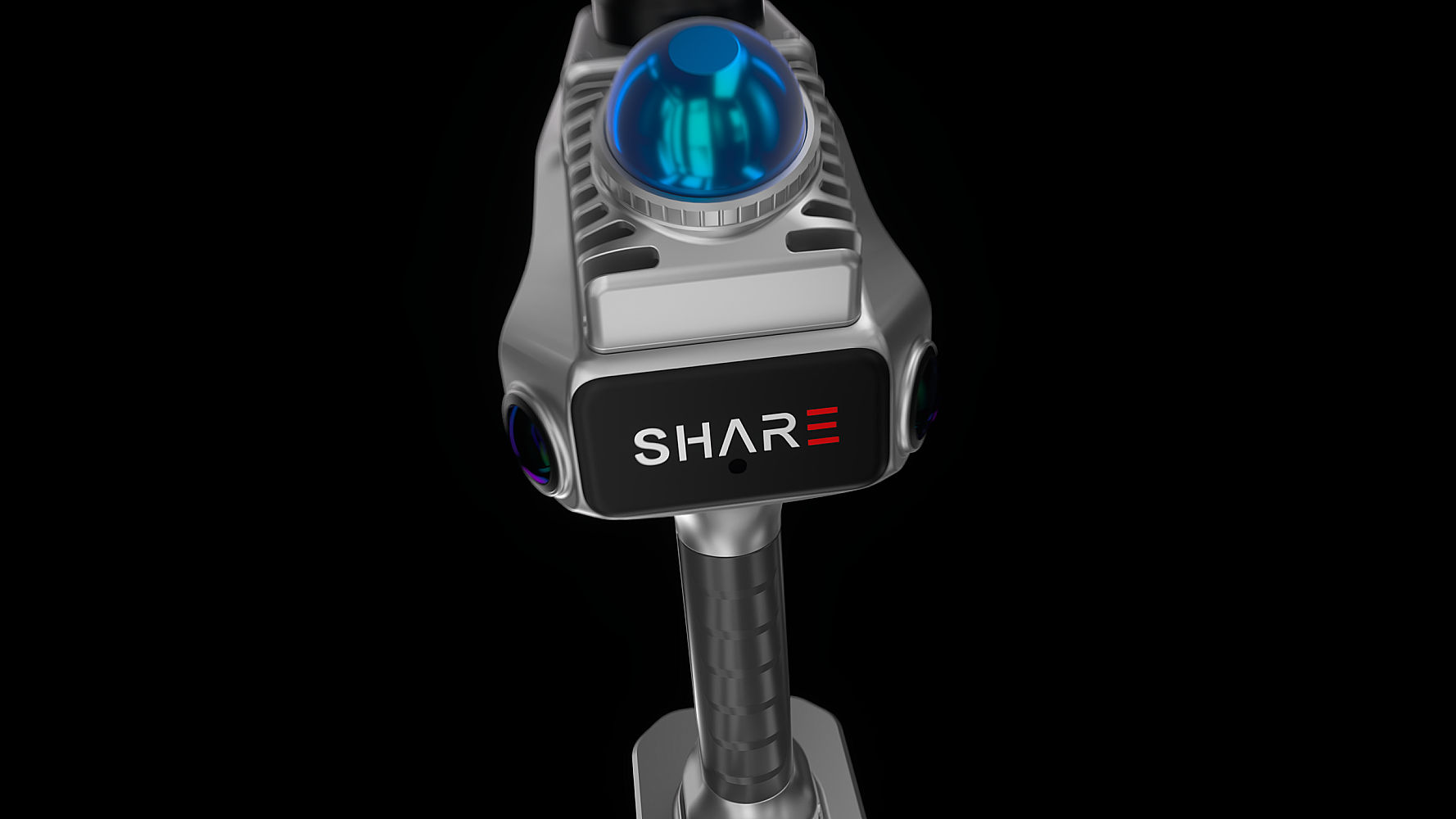

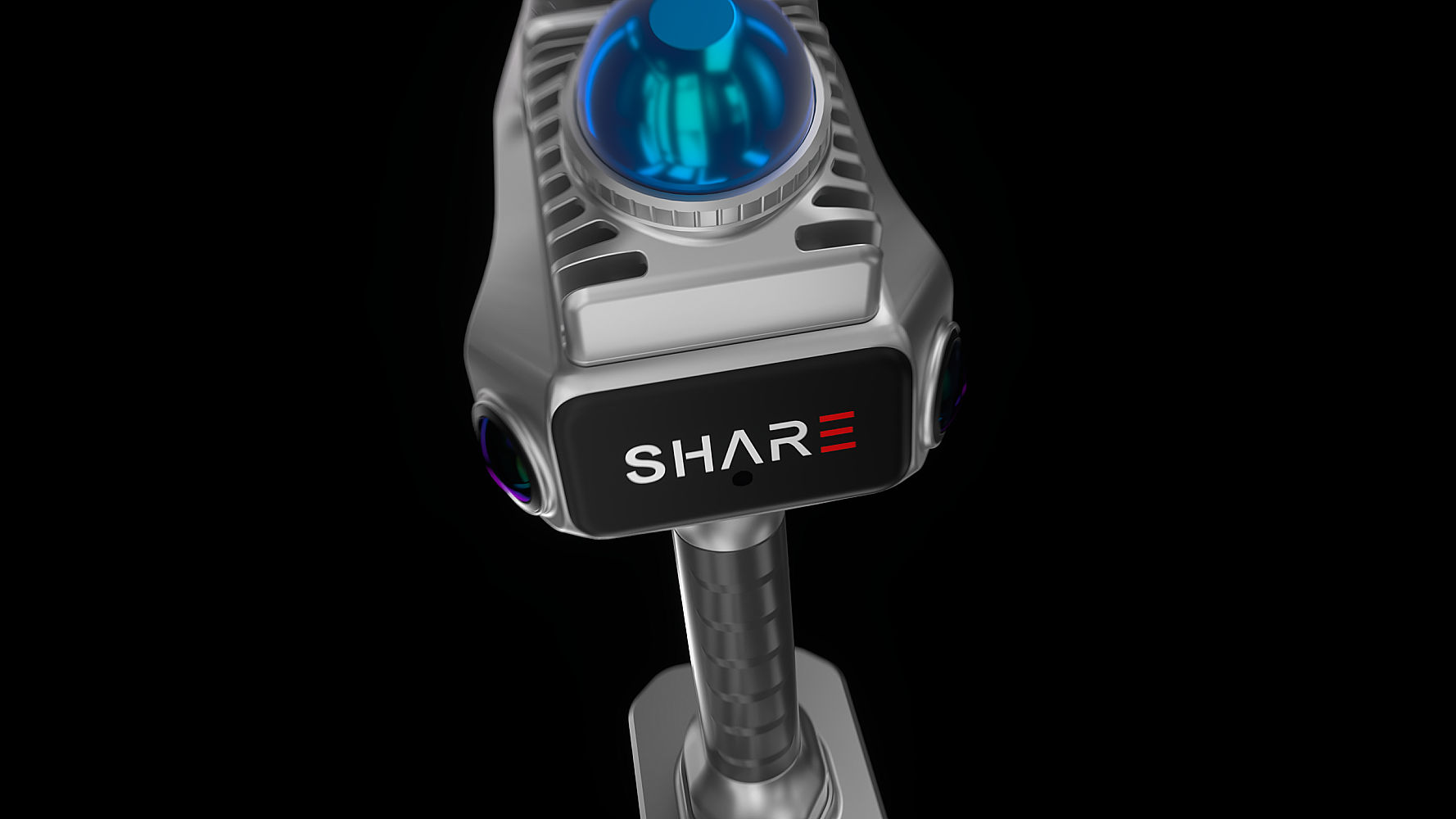

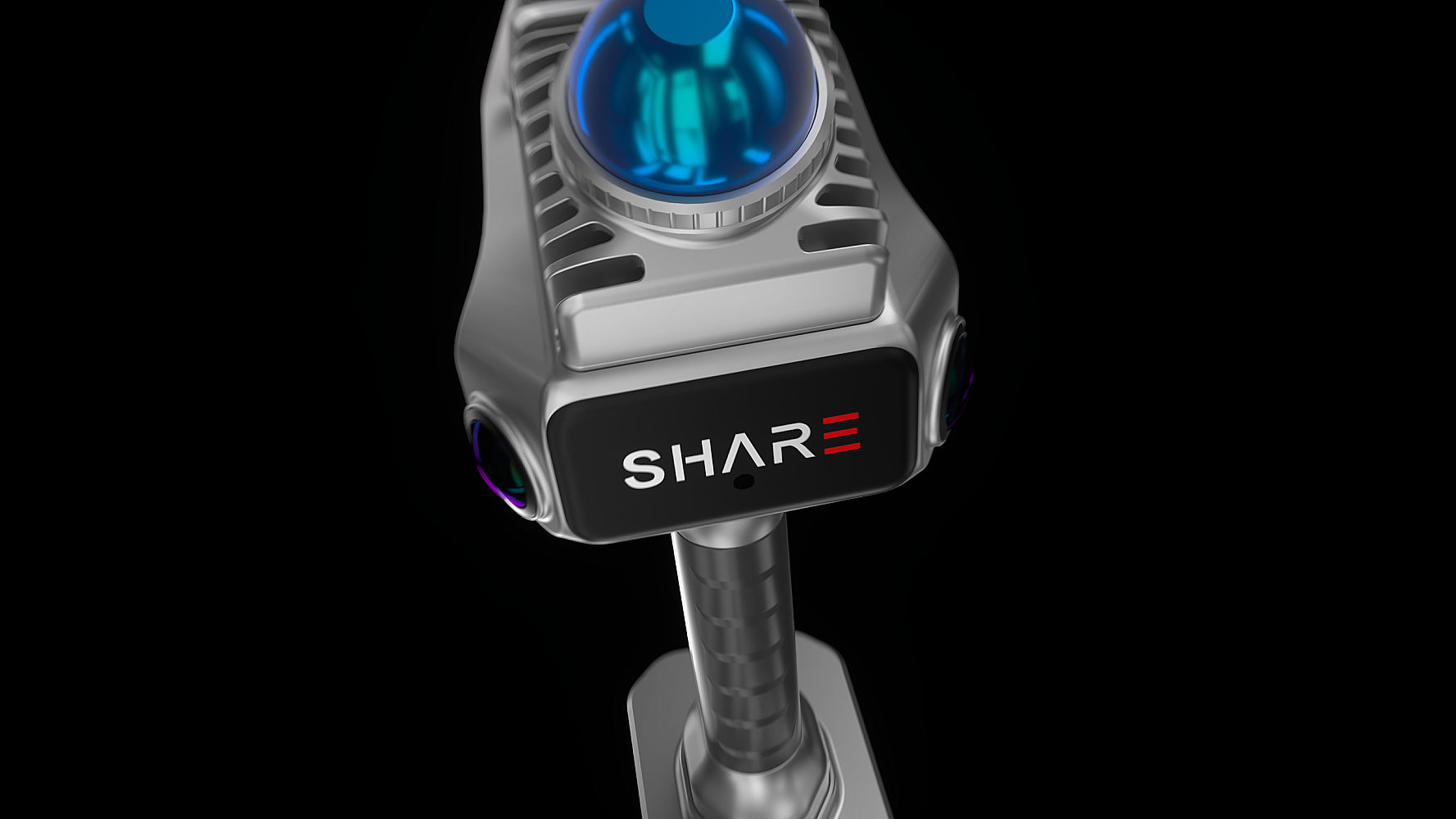

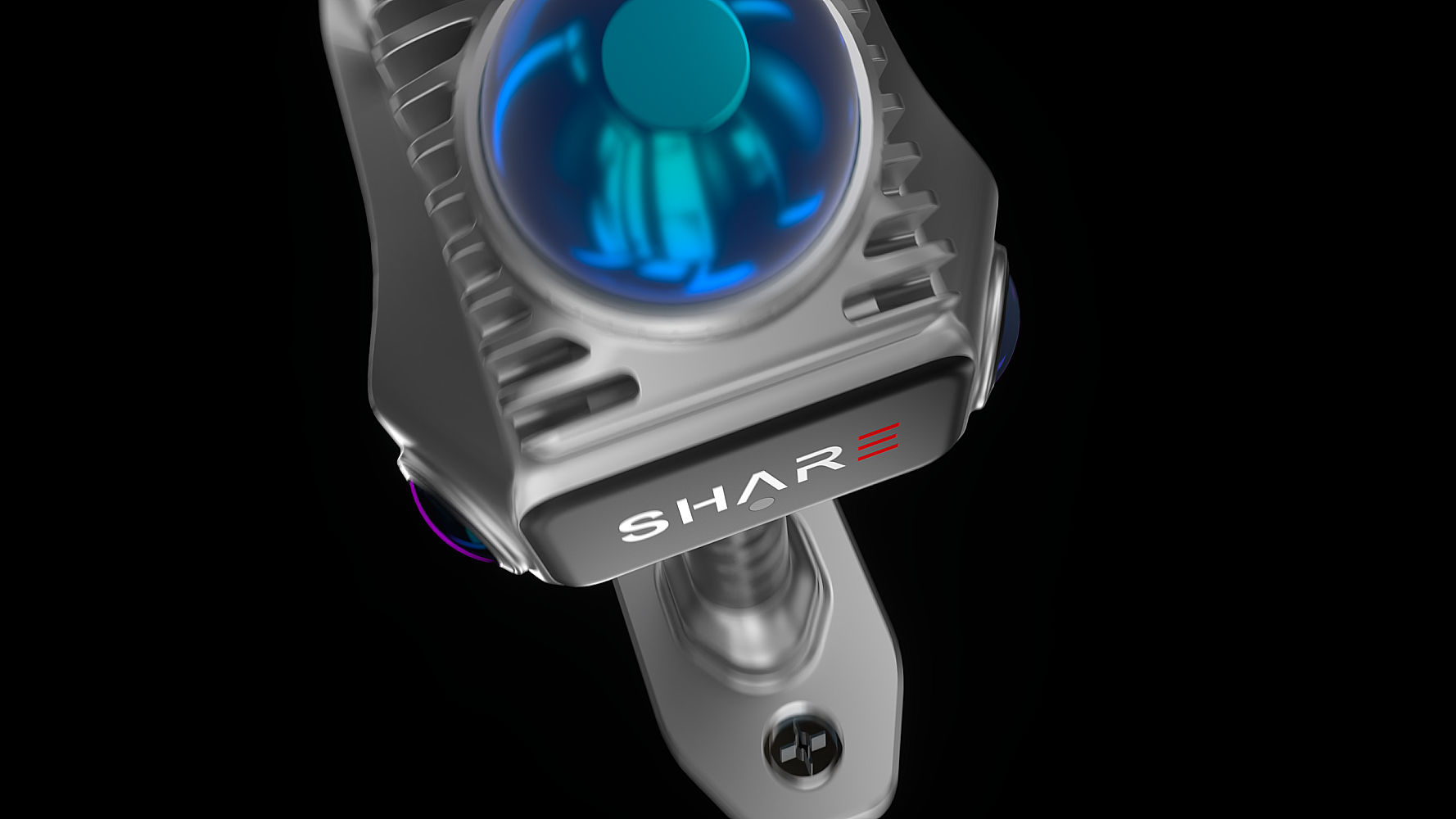

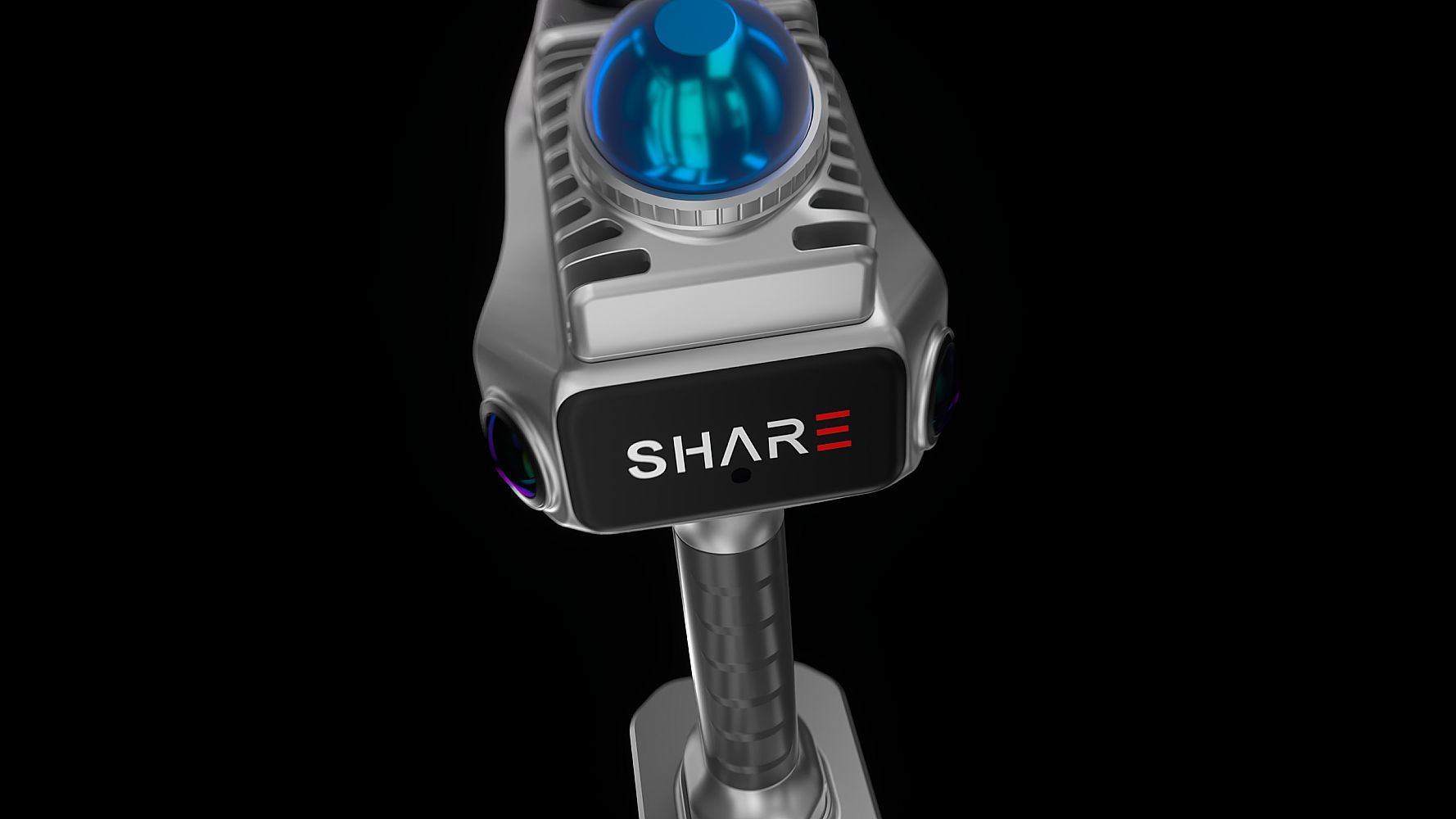

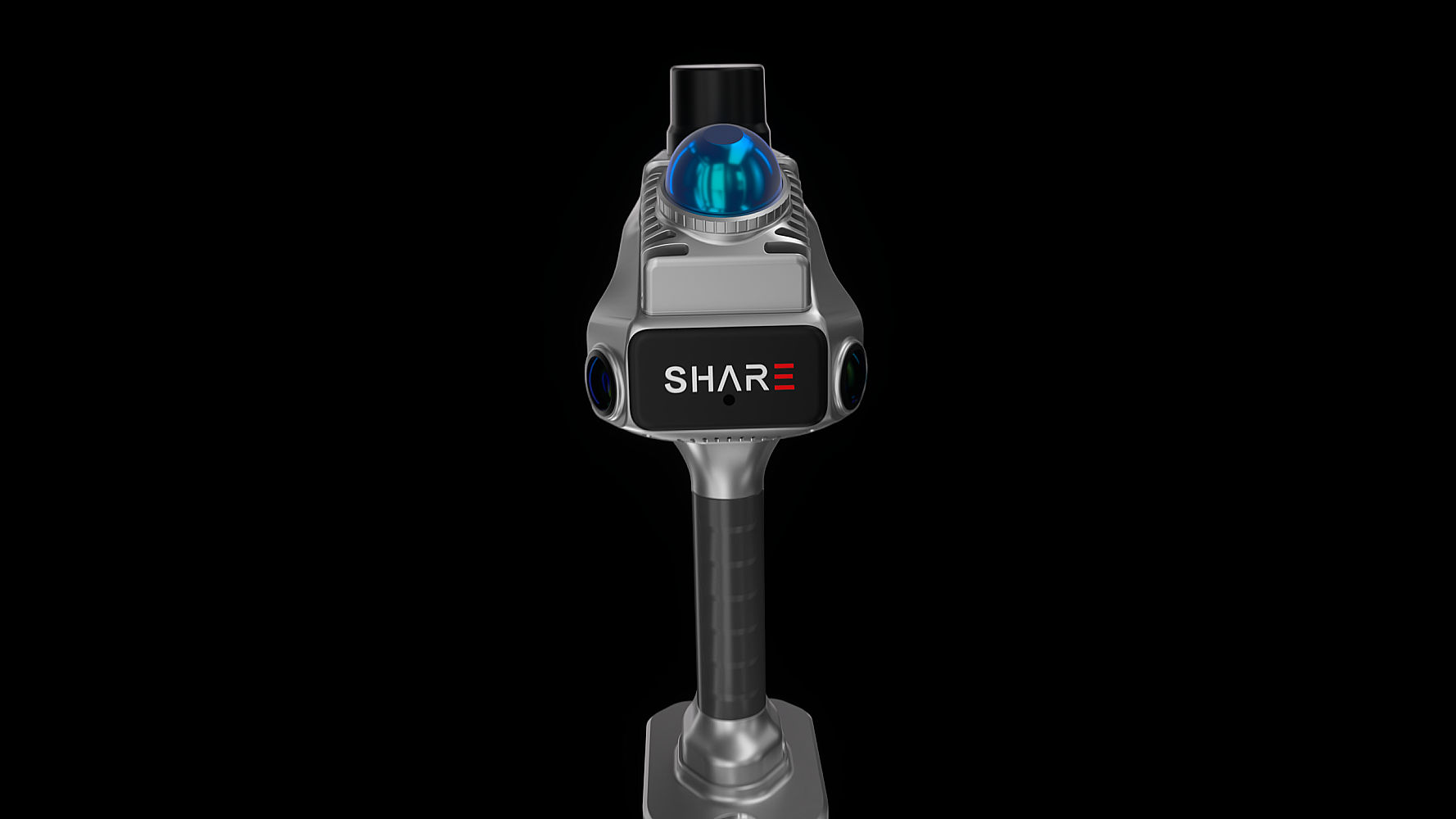

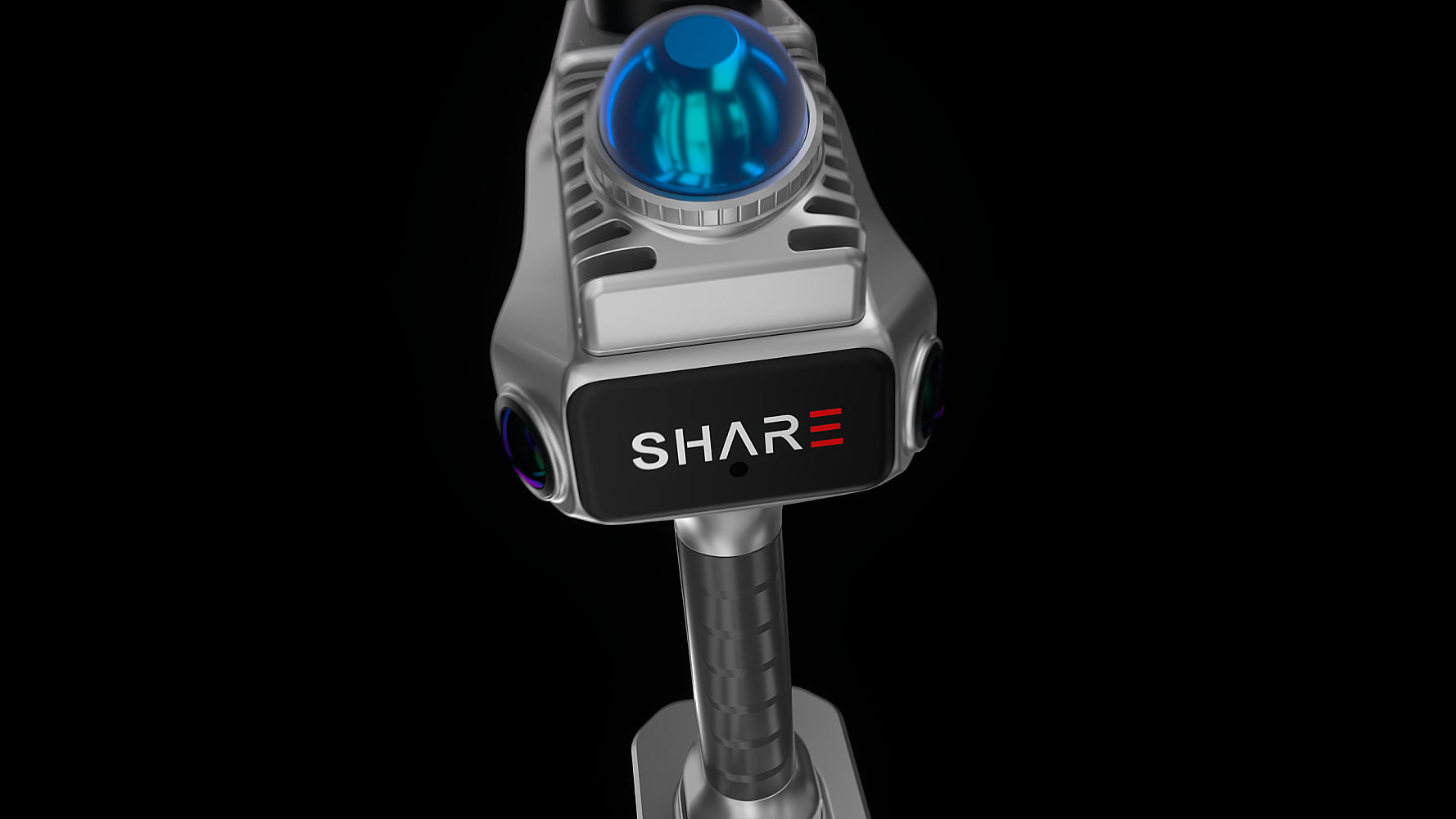

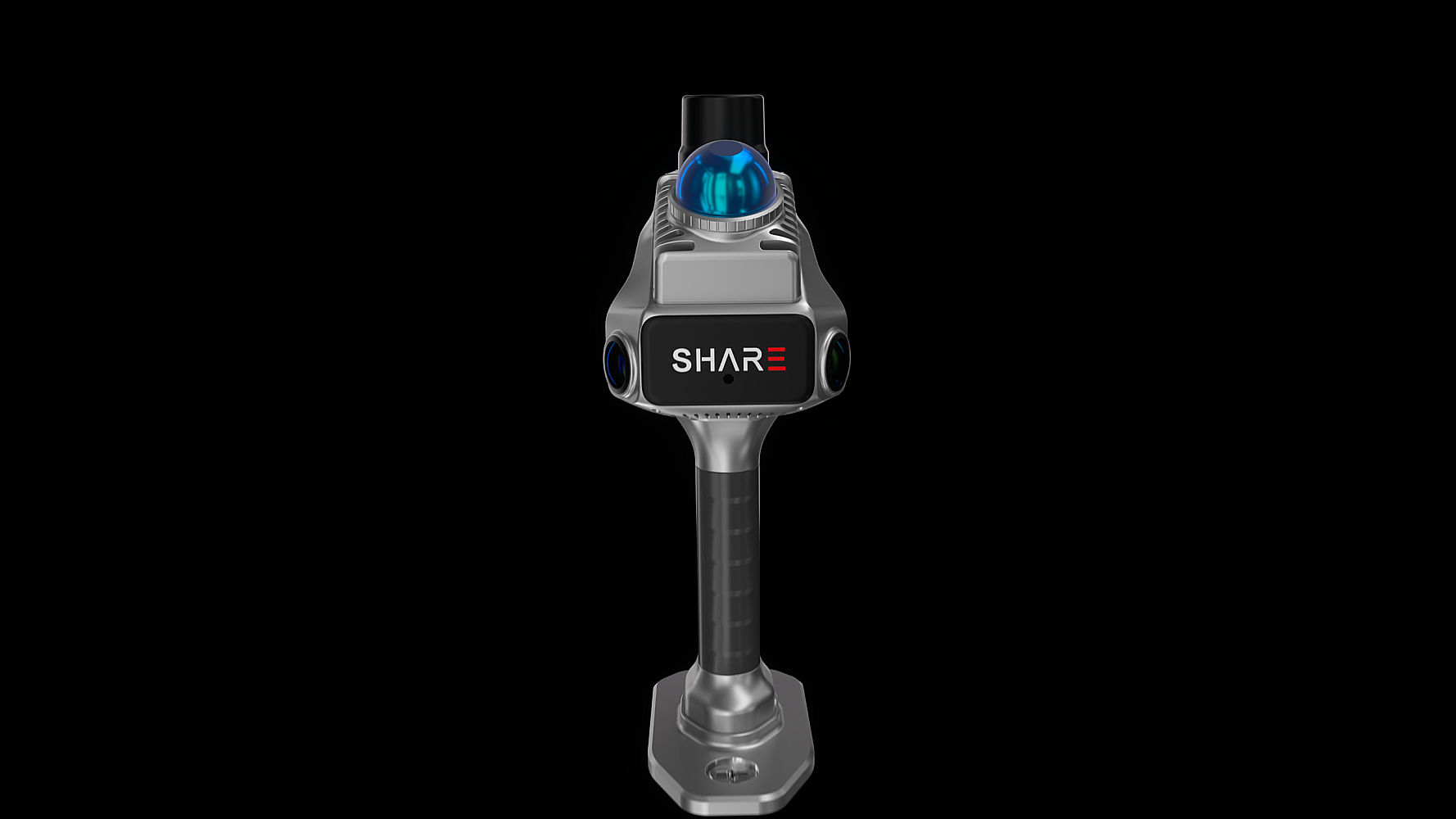

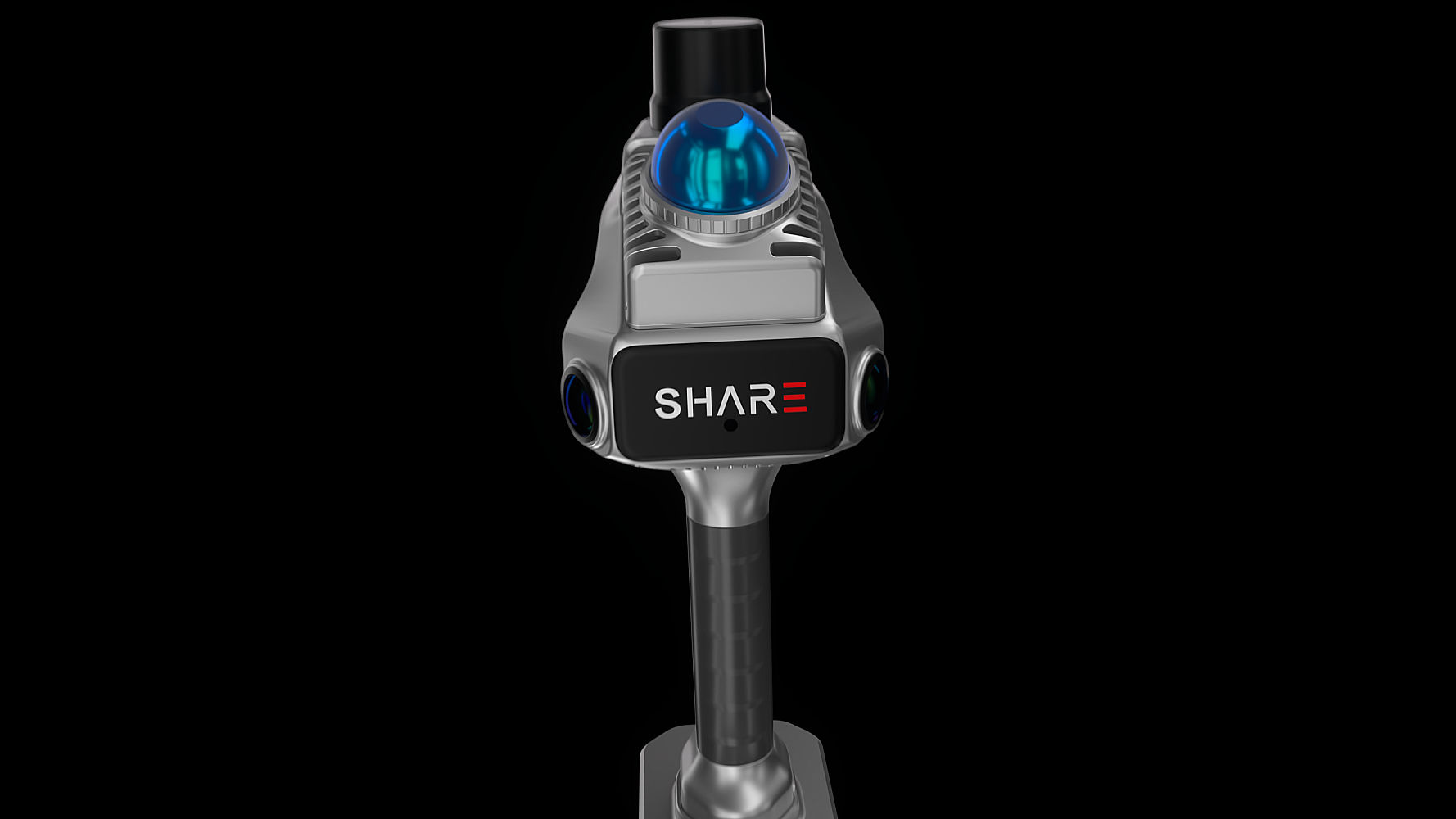

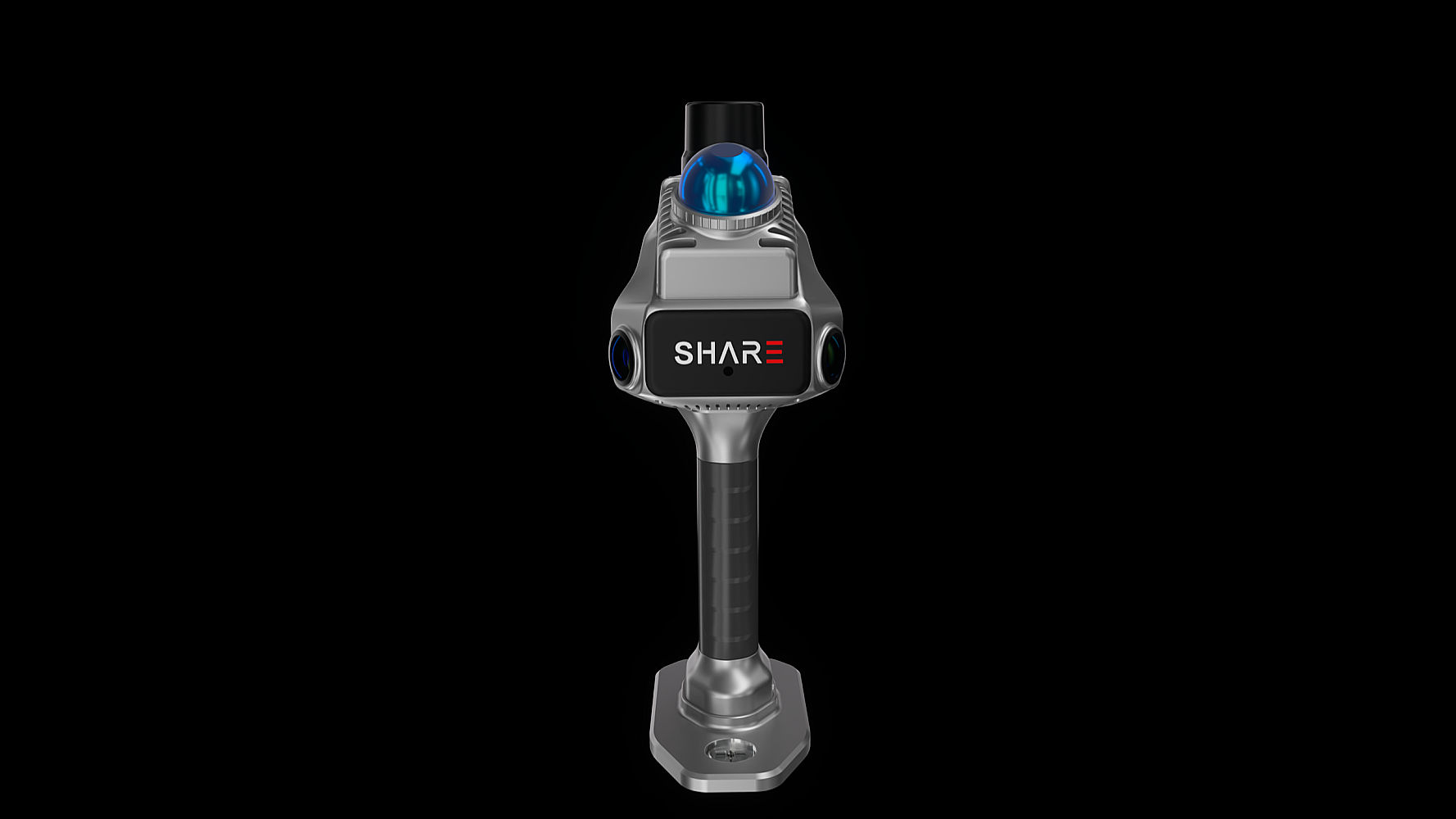

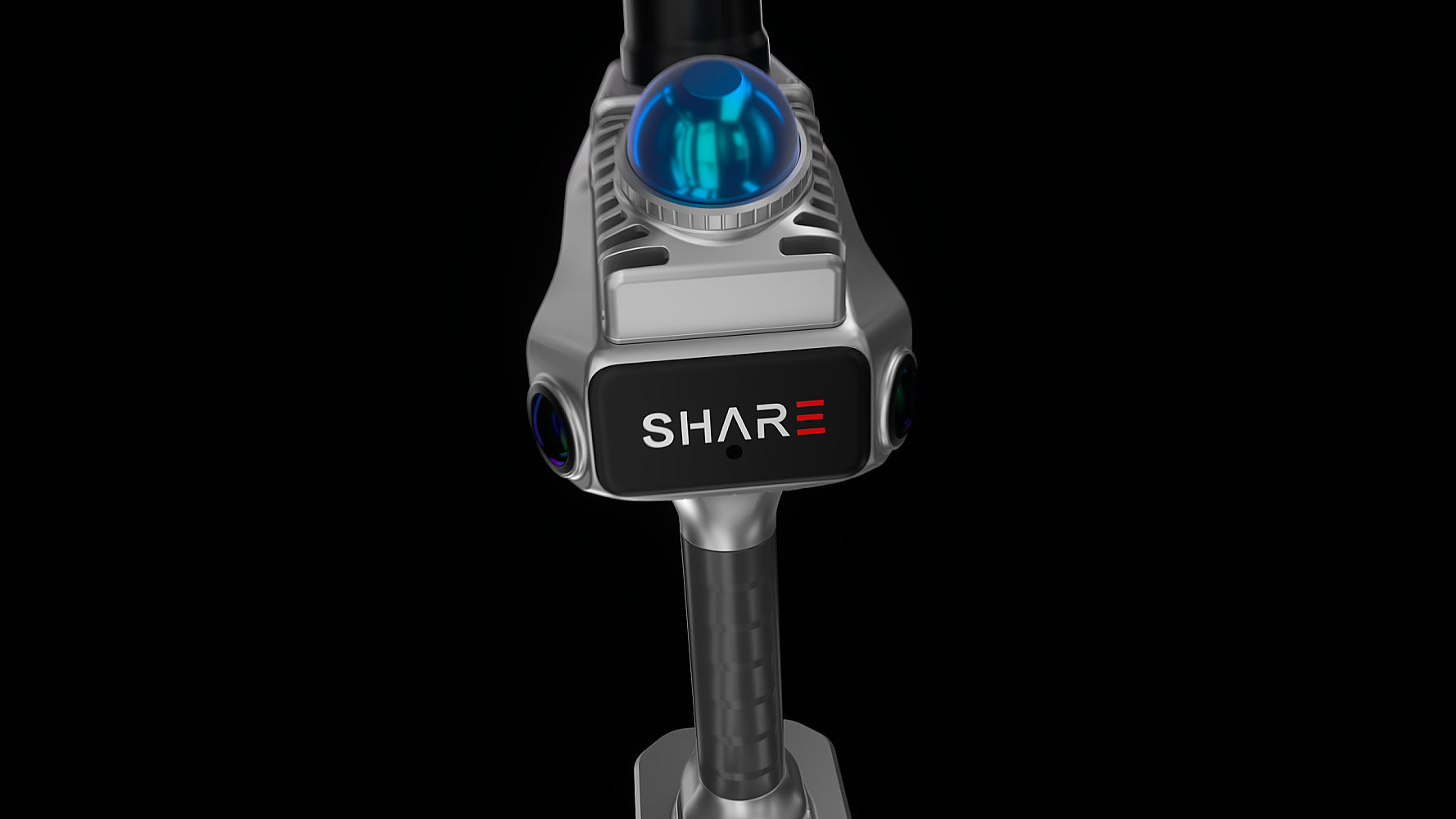

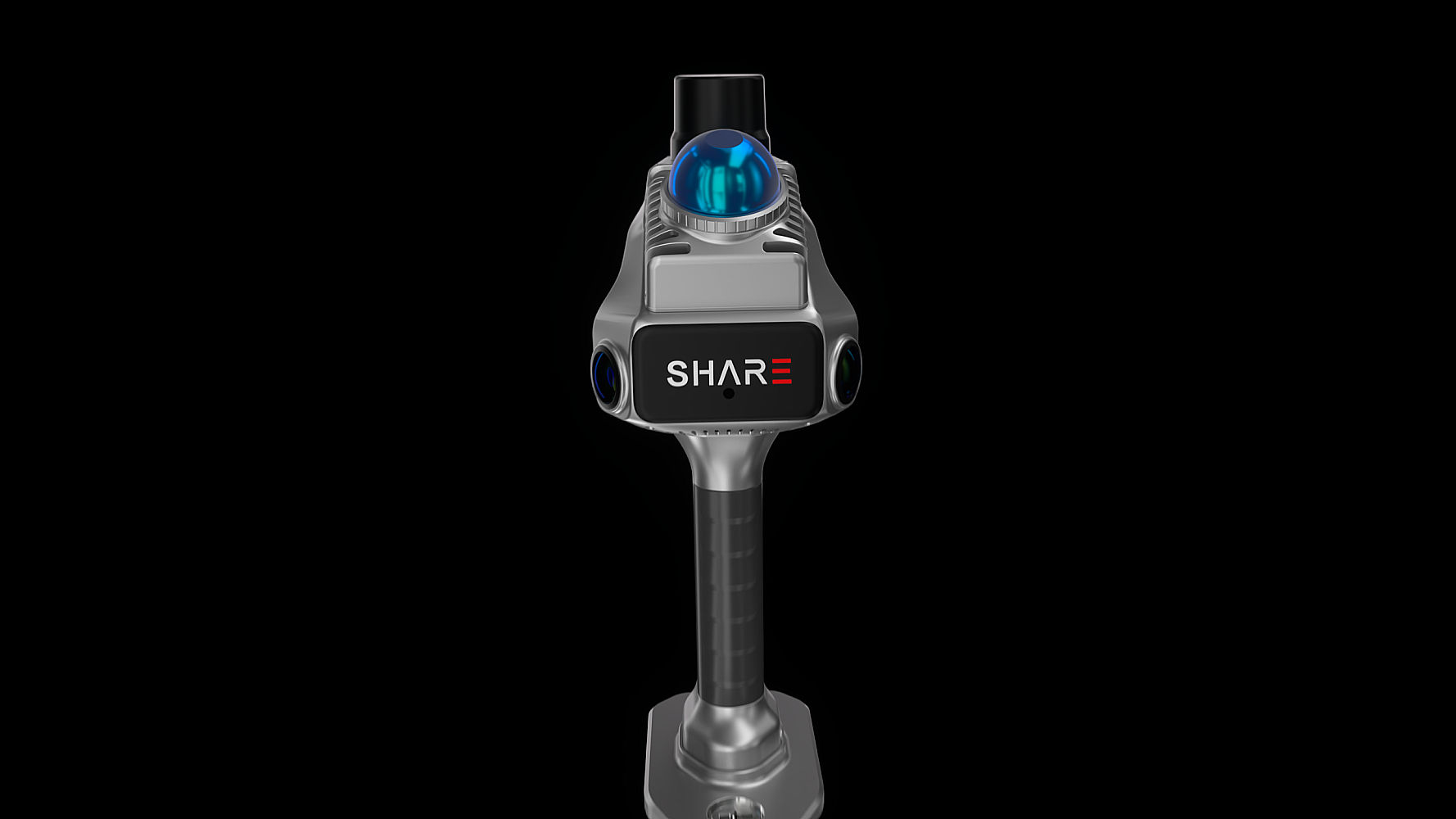

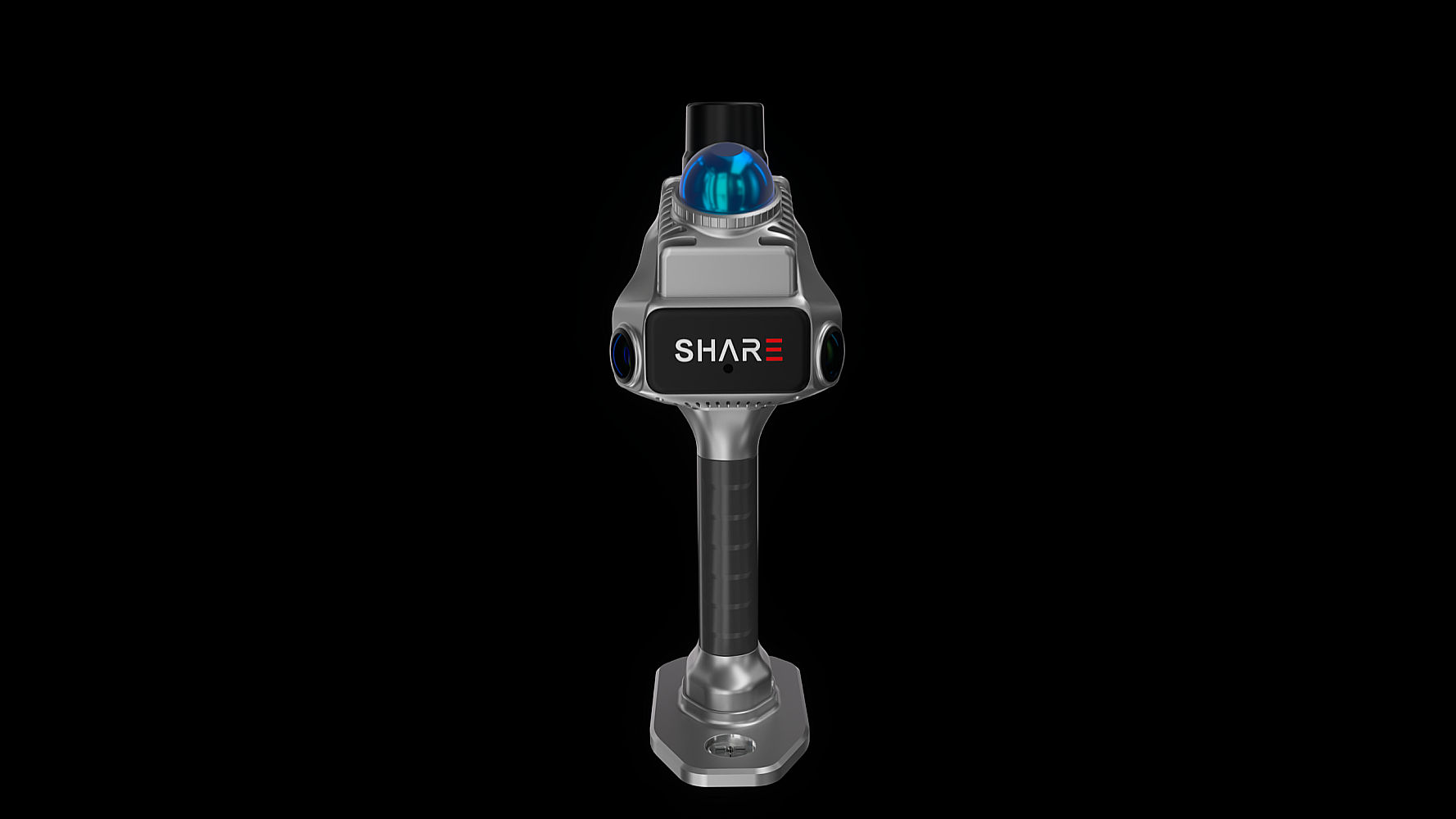

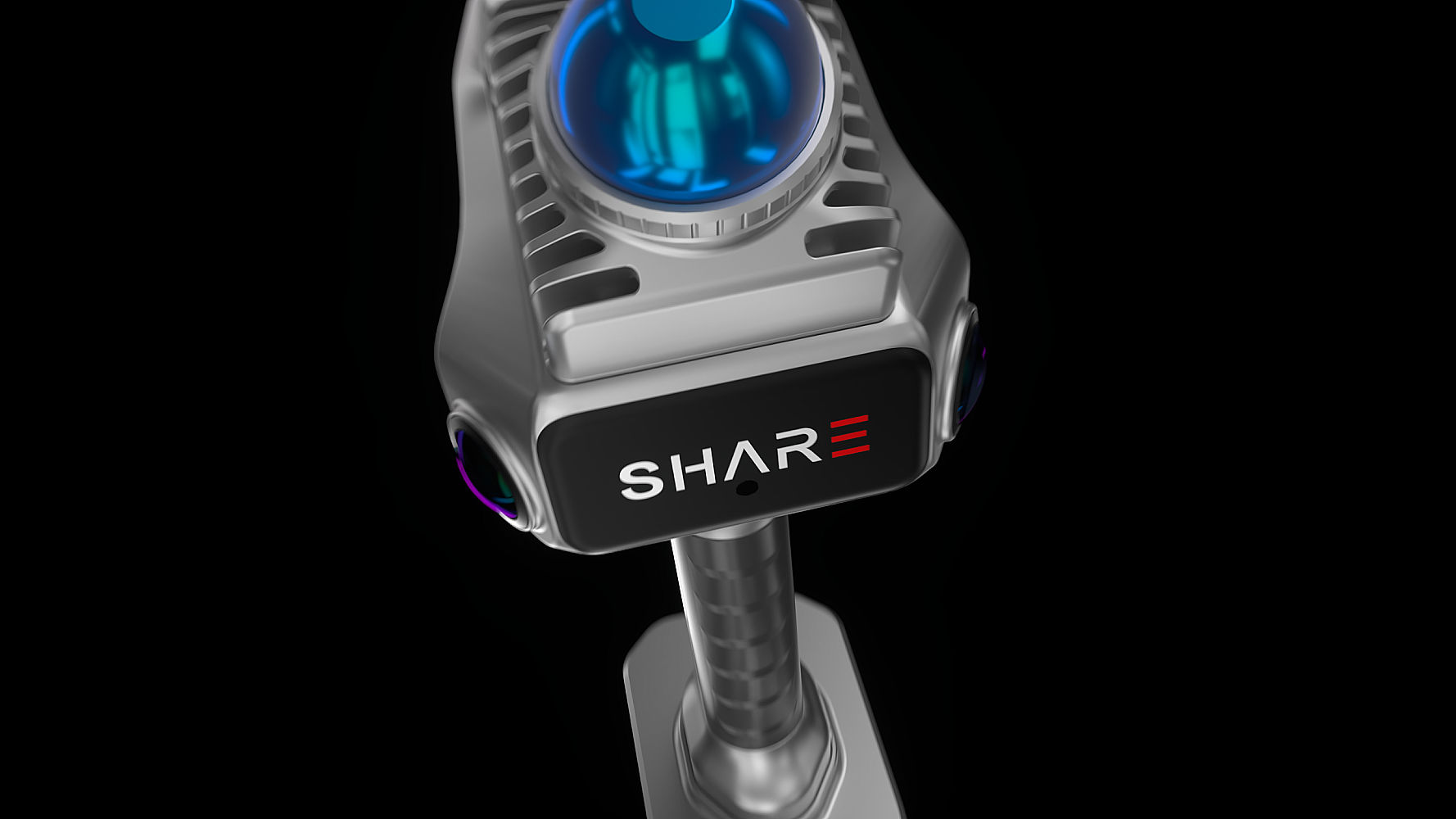

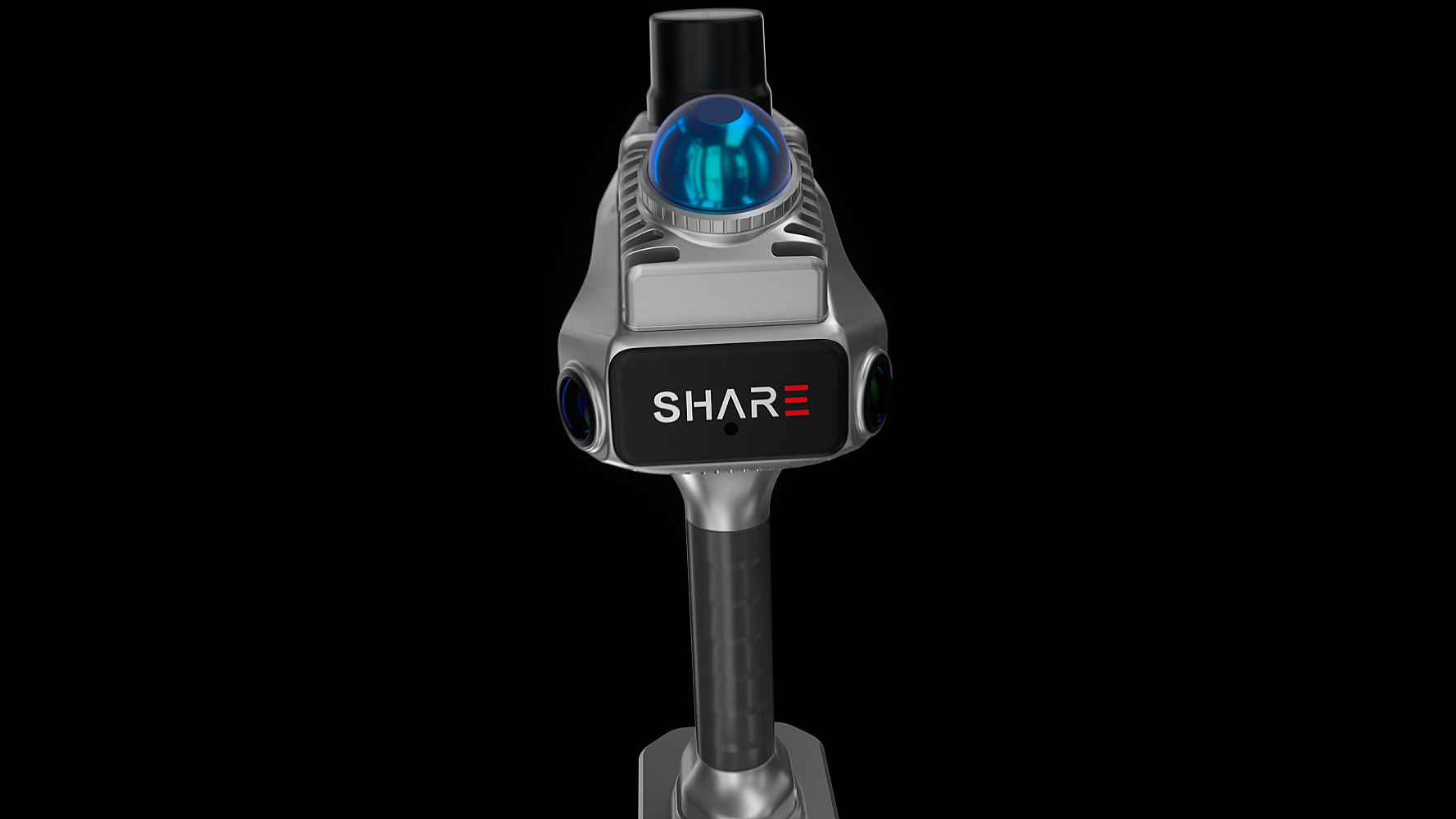

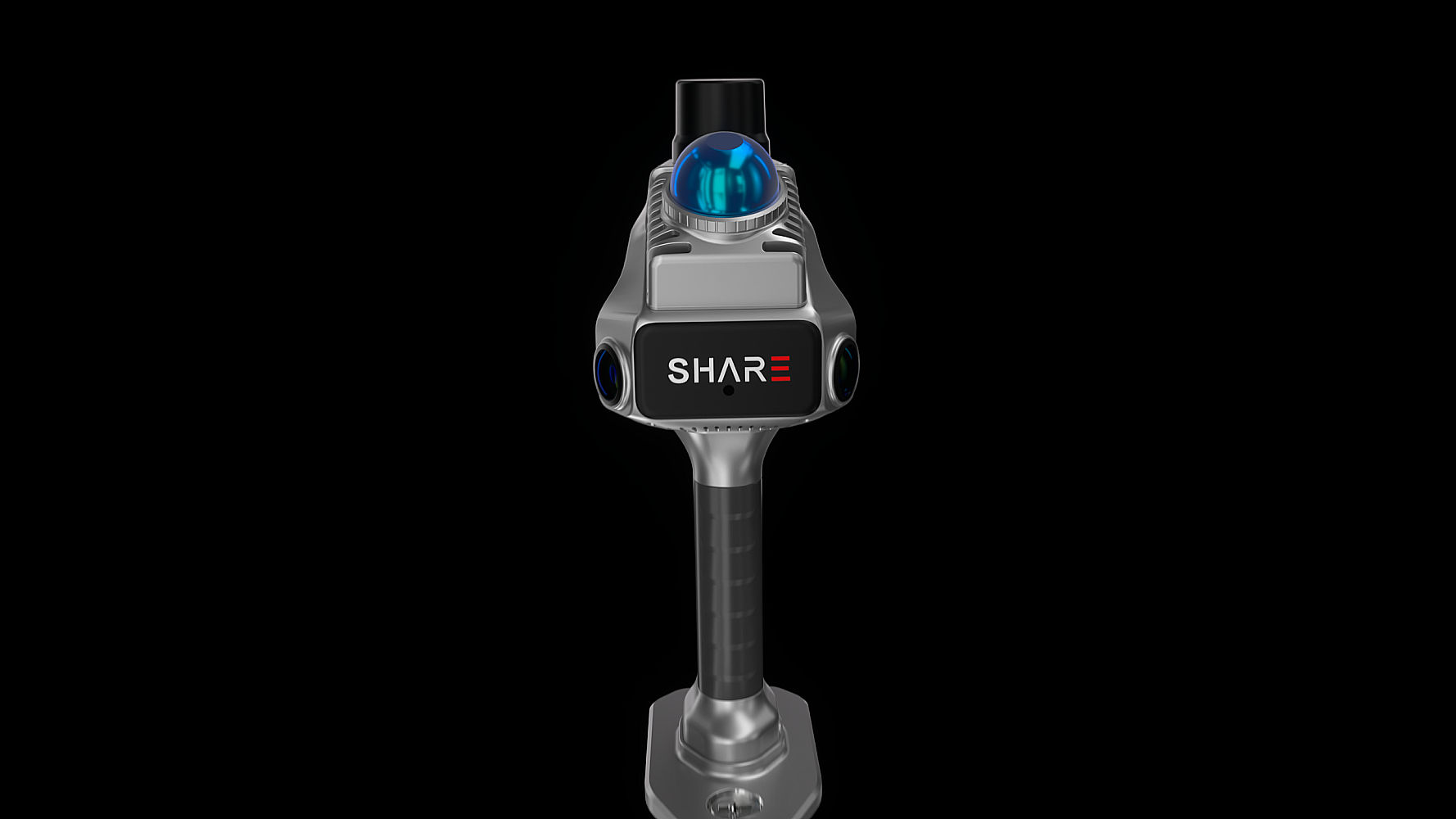

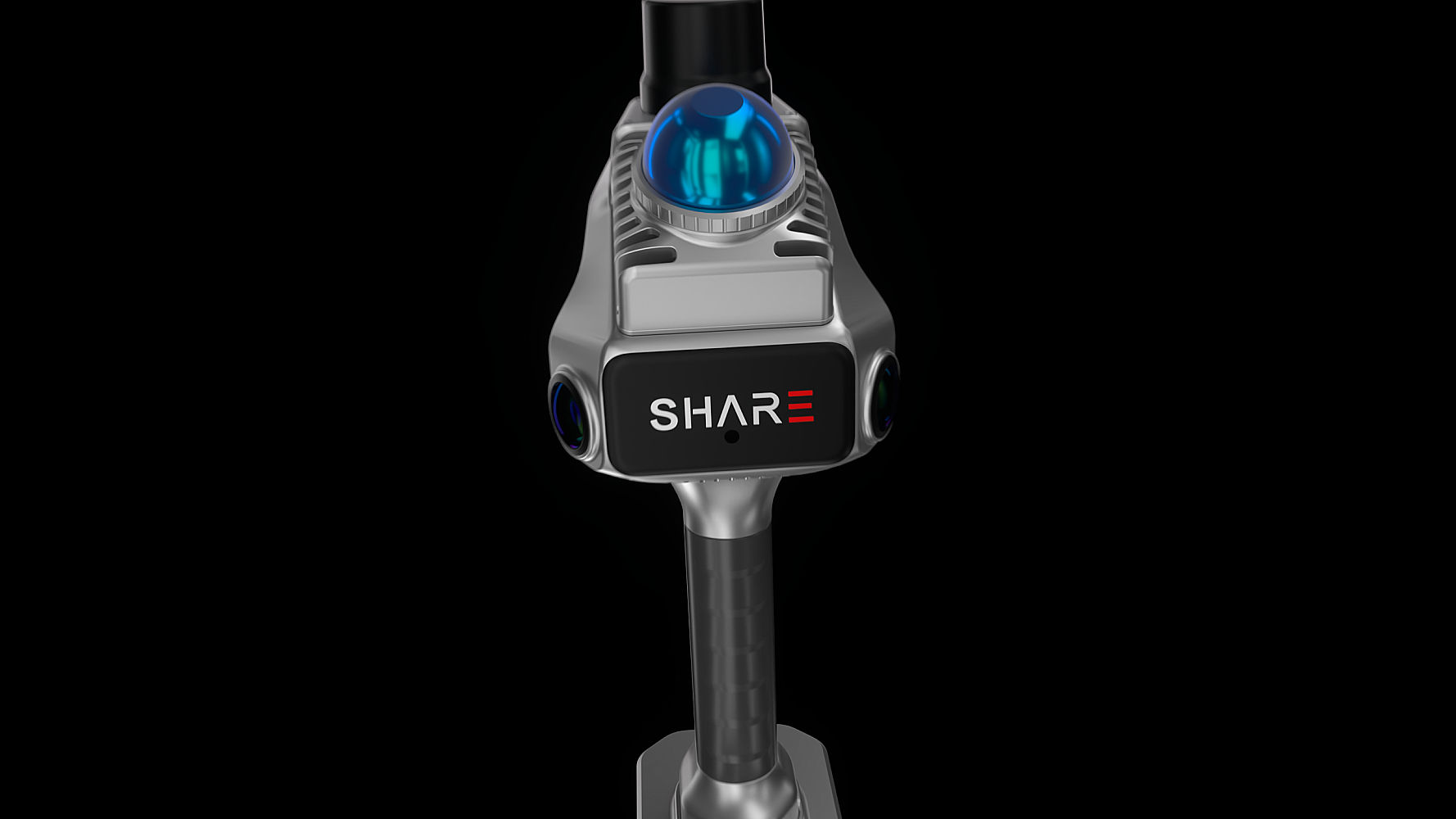

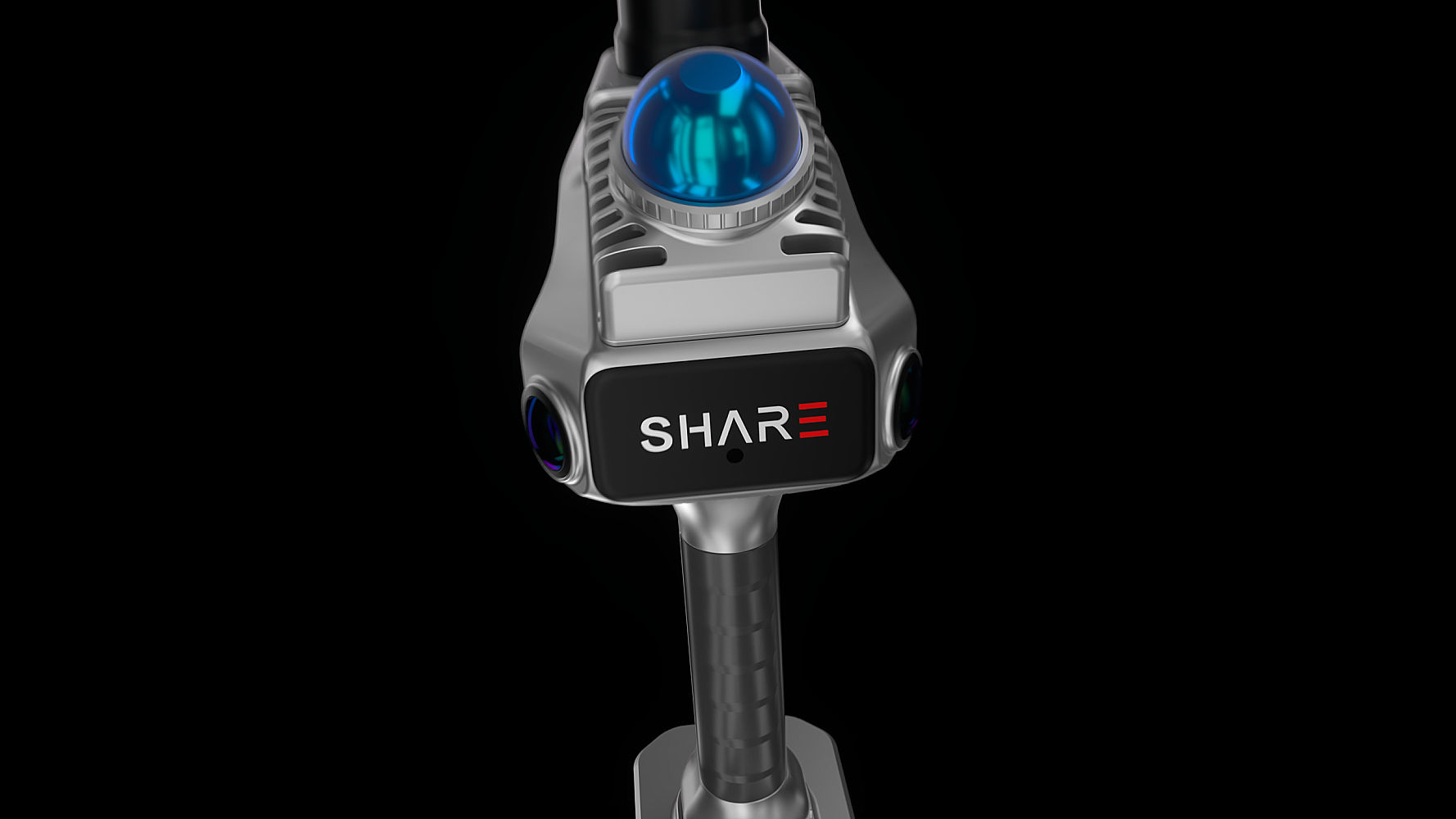

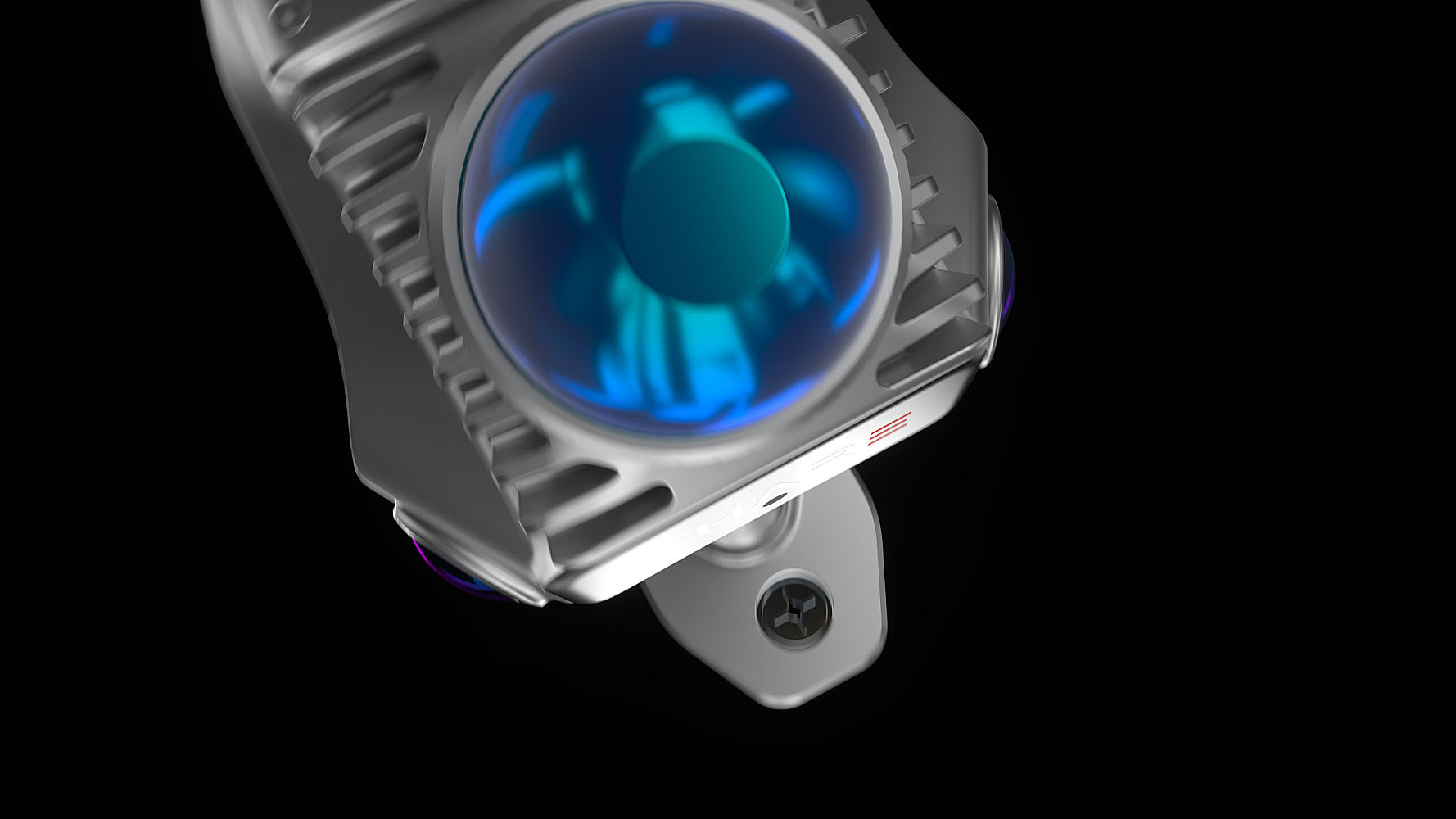

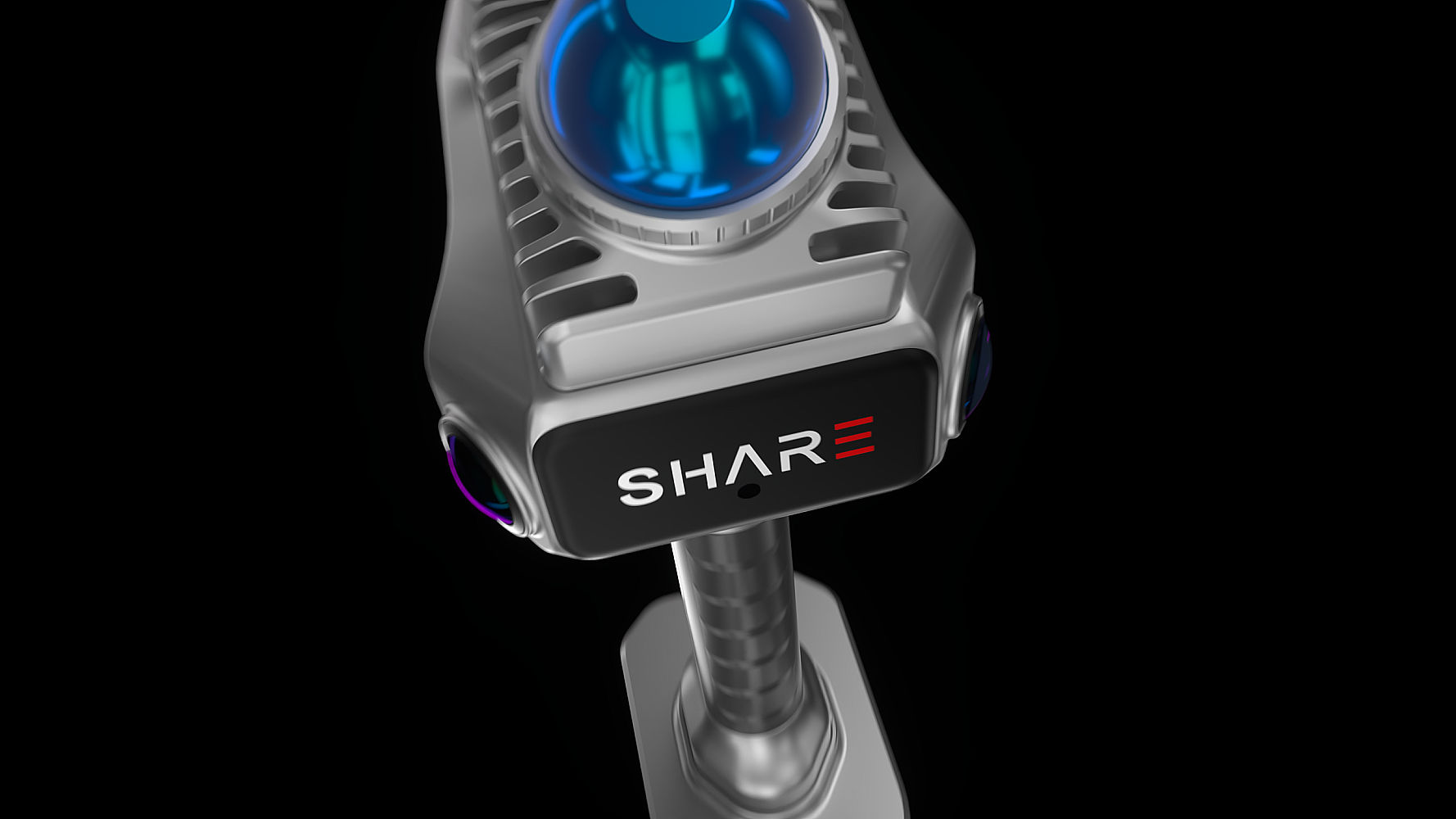

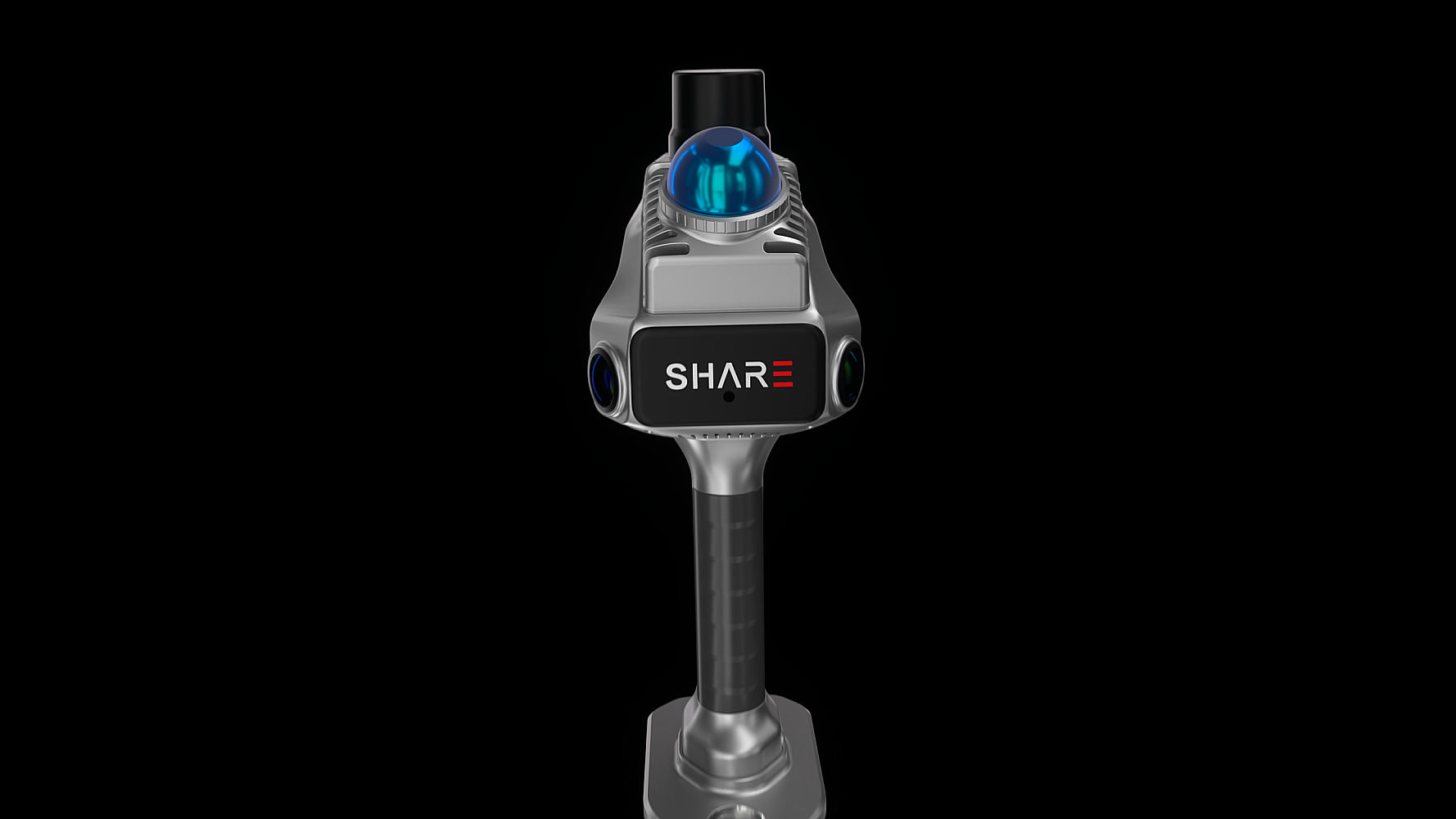

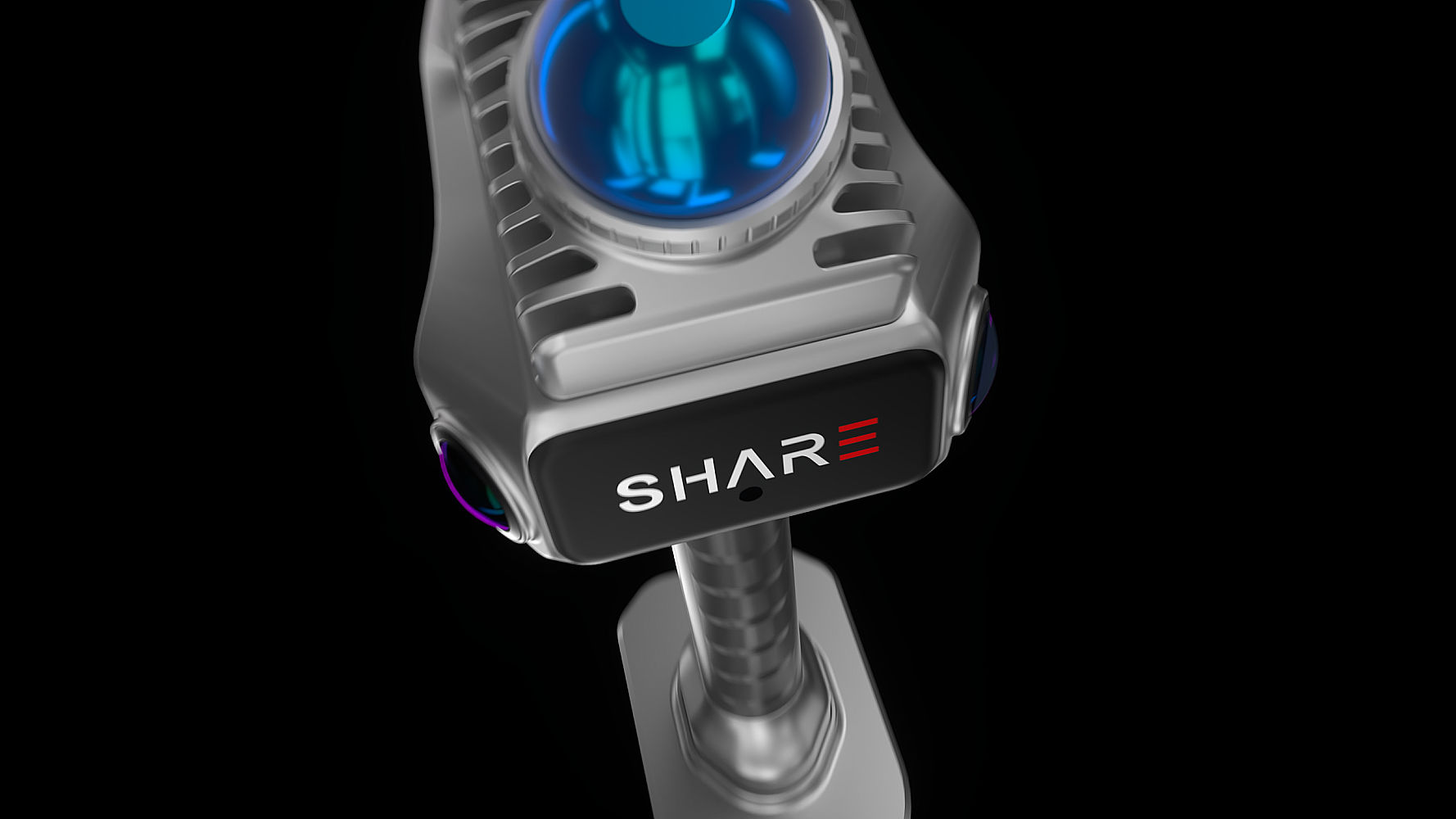

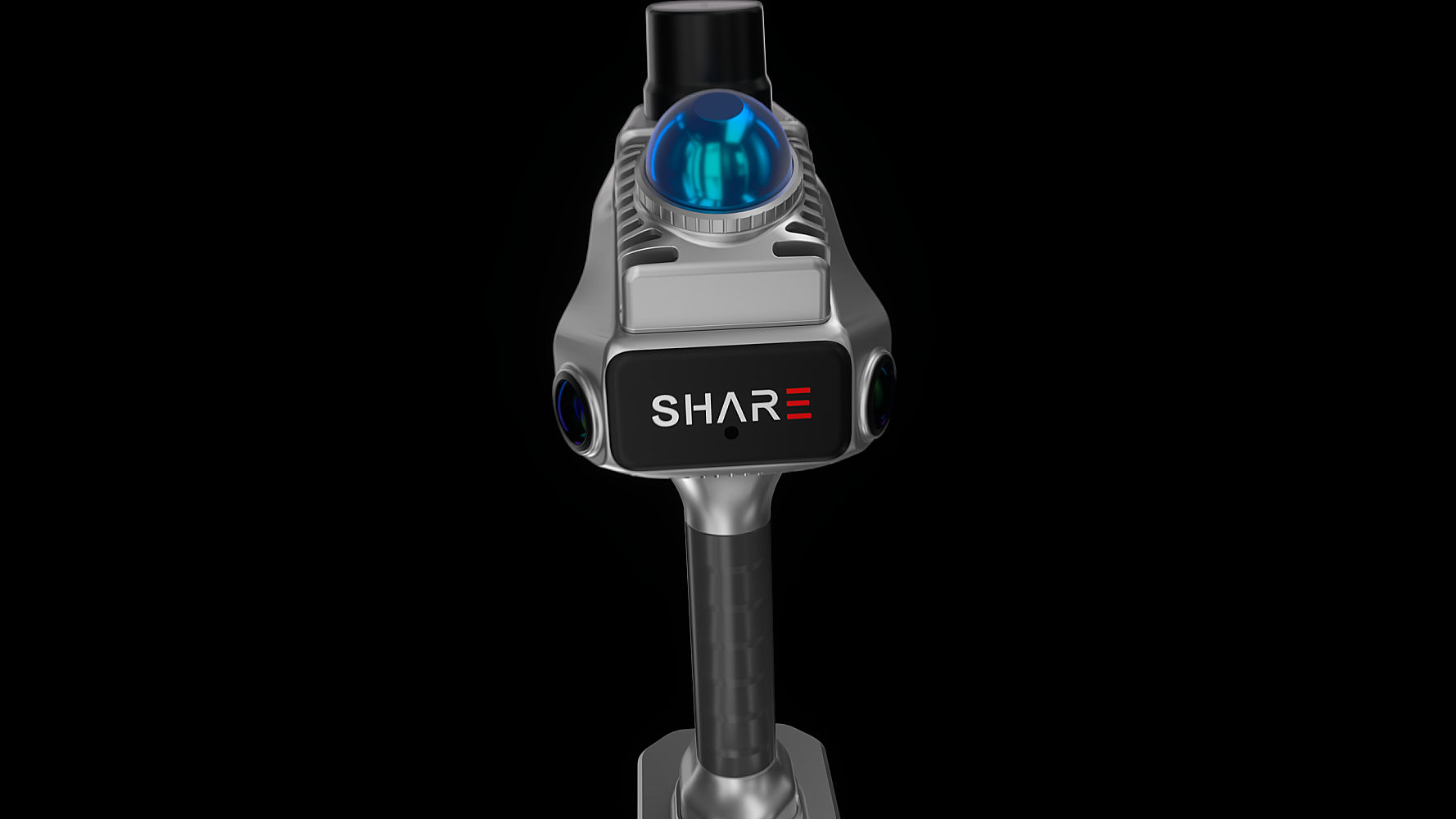

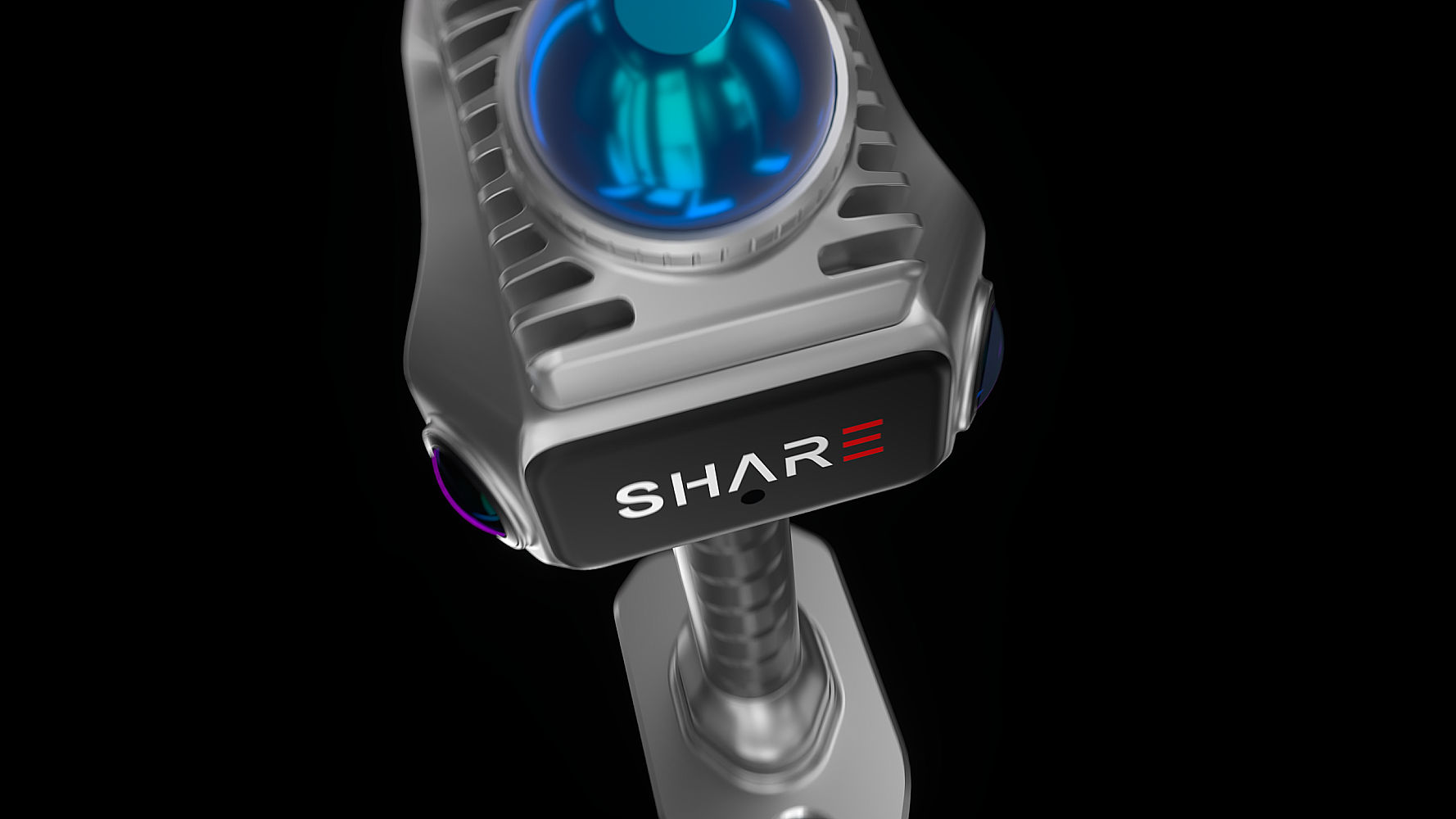

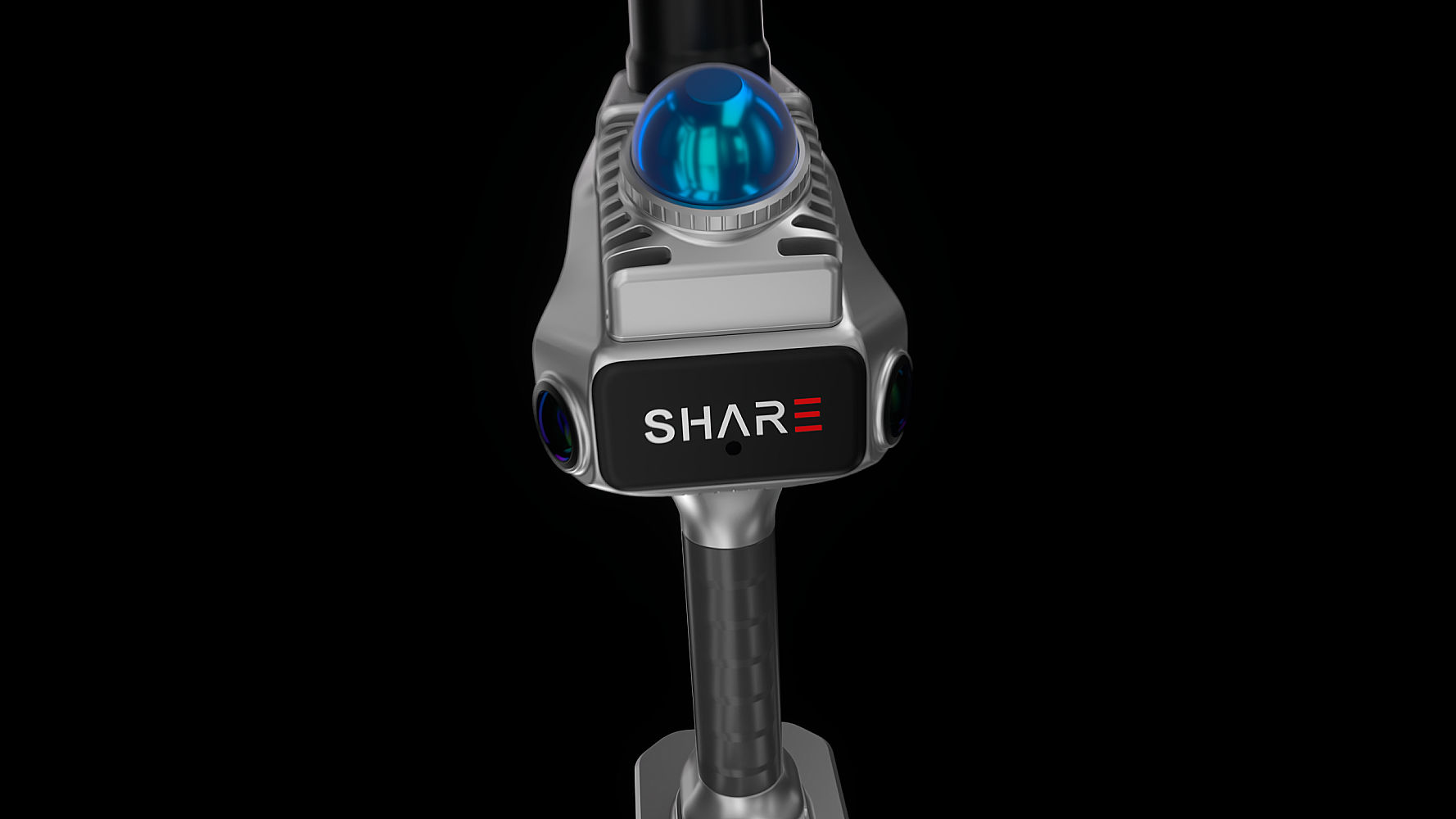

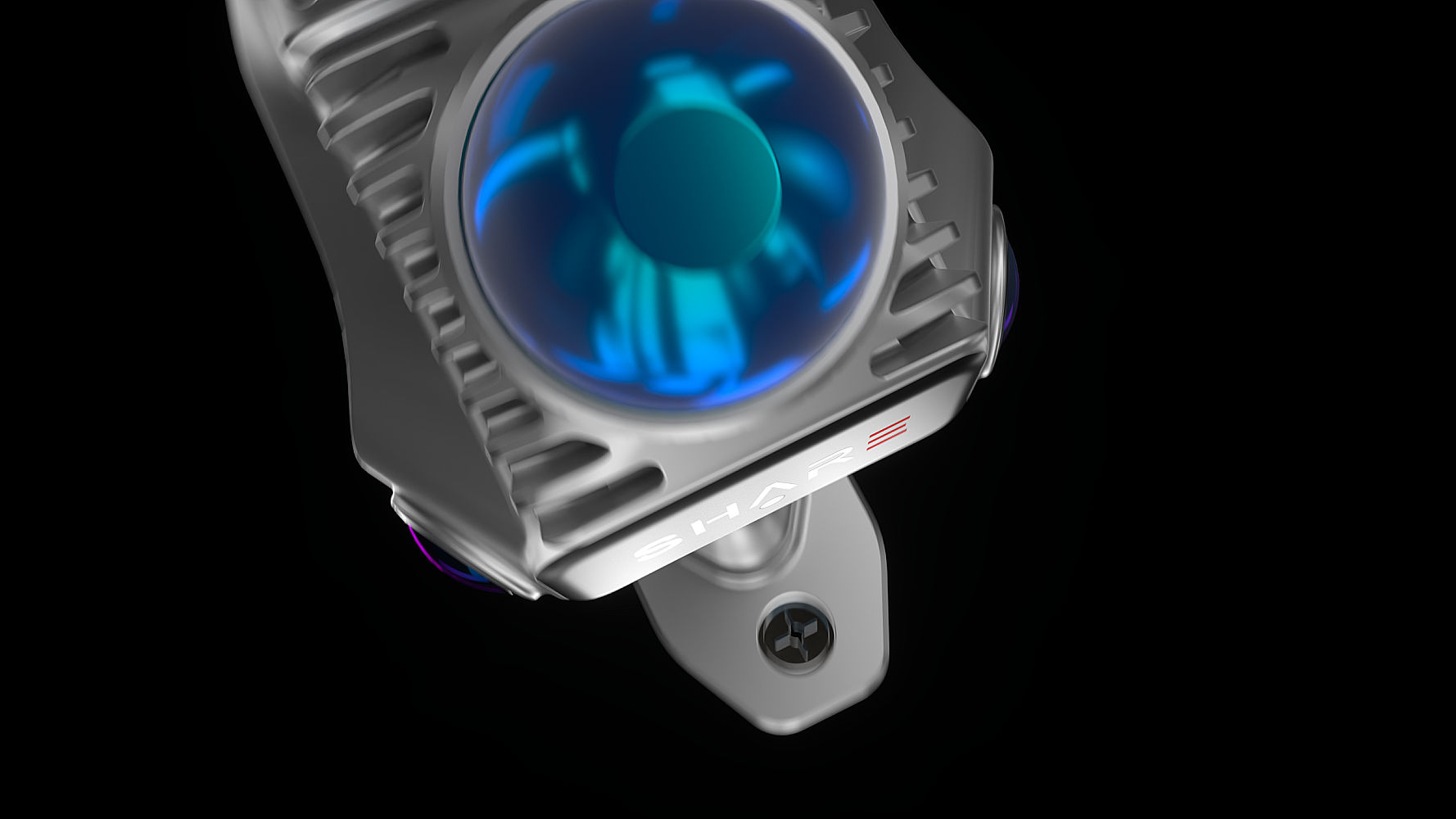

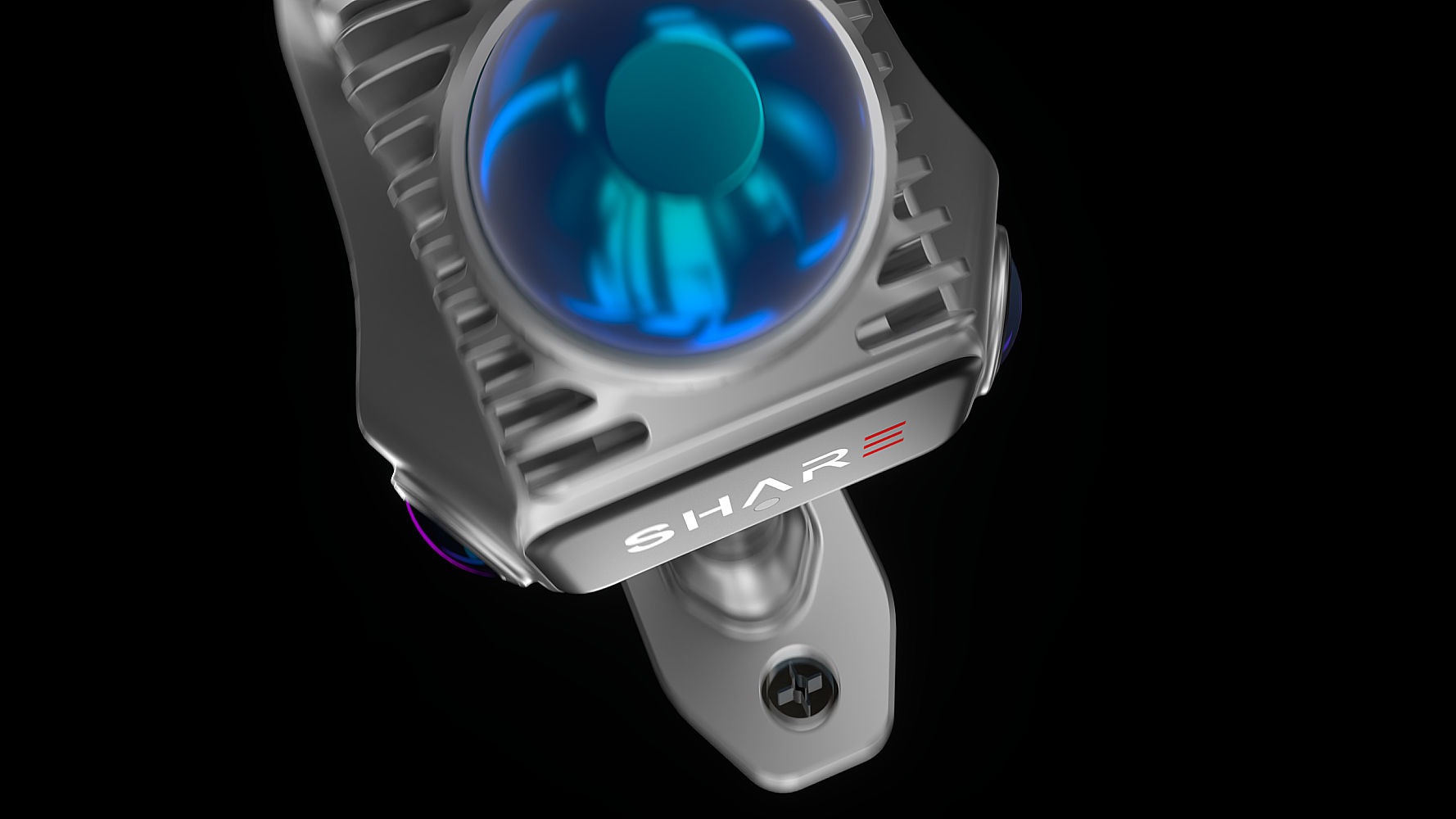

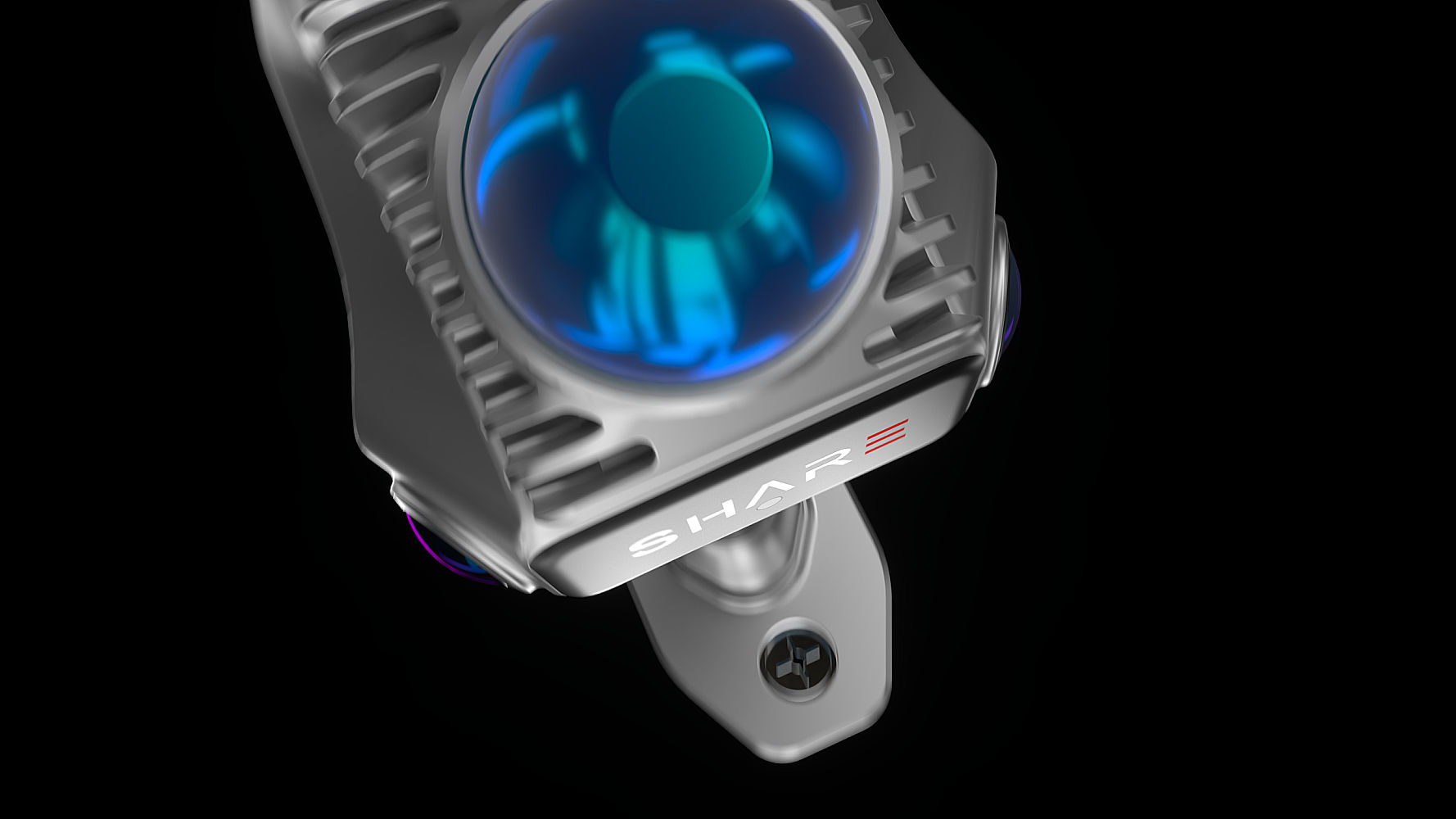

3D LiDAR Scanner

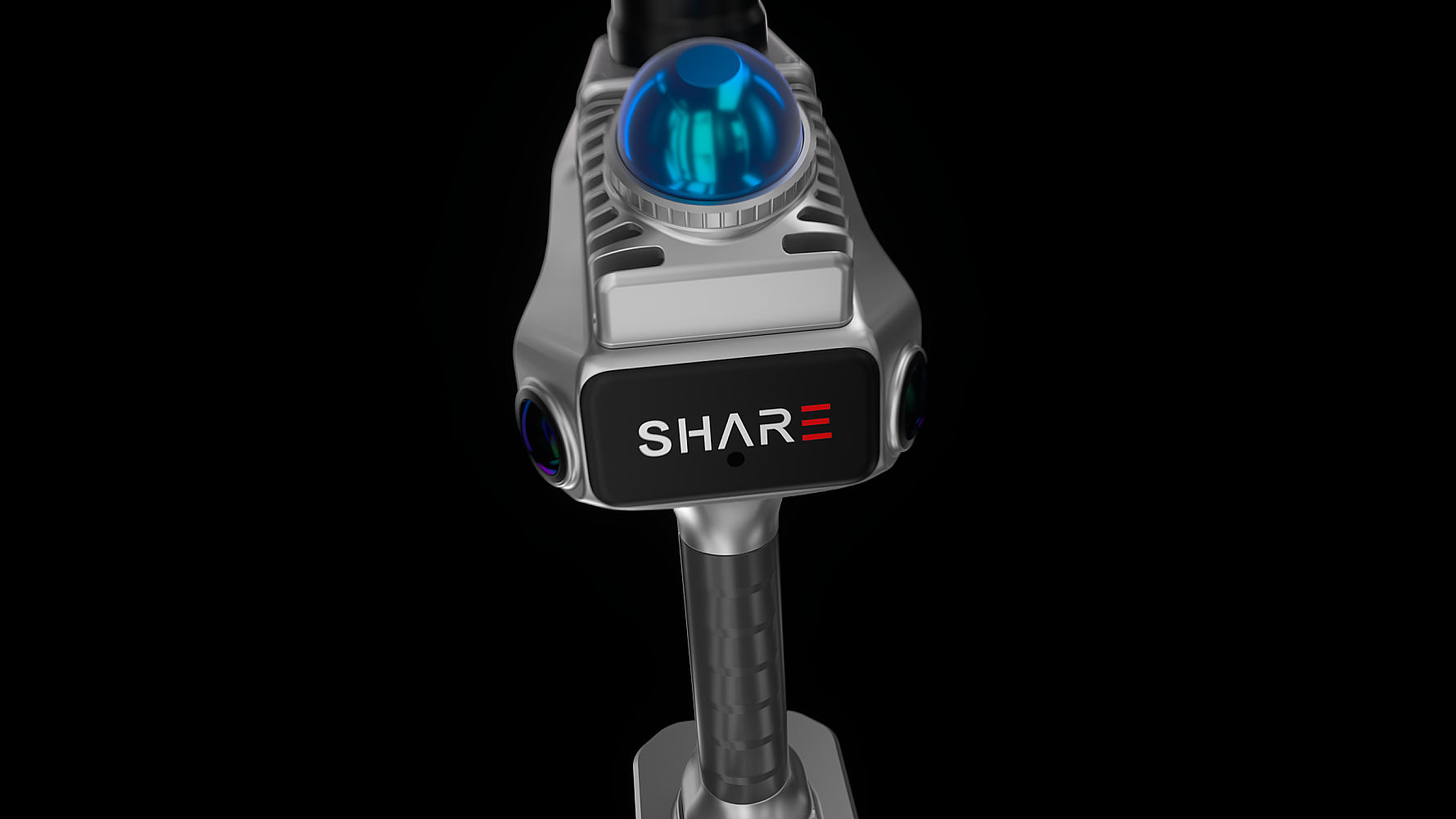

SHARE SLAM S20
Larger Sensor, Mechanical Shutter, Precision in Point Clouds
×
Dual one-inch outsole image sensors
2.4μm pixel, single lens effective pixels 16 million
Photo clarity is improved, and point cloud coloring is clearer and more accurate.
Professional grade mechanical shutter
The mechanical shutter achieves global exposure, effectively avoiding the jelly effect, and the color point cloud is more accurately colored, and the photos can be used for close photogrammetric modeling ;
The exposure moment is perfectly synchronized with the camera POS system to ensure that each frame of image accurately matches the spatial position.
S20 color point cloud
The whole machine hardware has microsecond time synchronization, the point cloud is more accurate, The intensity point cloud and the color point cloud are perfectly matched.
Friendly color point cloud offset
Global scene intelligent processing
Large scale survey map
Laser and visual SLAM fusion
Stair measurement
The algorithm is robust
Tunnel survey
Adapt to a variety of complex applications
forestry survey
Open Ecosystem to Create a Future Together
Open hardware interface, combined with other platforms, and open SDK can realize communication with equipment, data transmission, control operations and other operations, perfectly adapting to new survey equipment such as embodied intelligence.
Open raw data
The original data is fully open to software developers. Developers can adapt their own SLAM algorithms for processing, and photos can be used to generate Mesh models to meet the needs of various data processing applications.
Deeply adapted to in-house drawing
Point cloud data is directly connected to the BIM/CAD workflow to achieve efficient drawing modeling with high-precision point cloud data.
Photos support 3DGS modeling
Thanks to the one-inch outsole camera, combined with photo writing pose technology, the photos are clear and even in color, which can better fit the 3DGS generated model.
product details

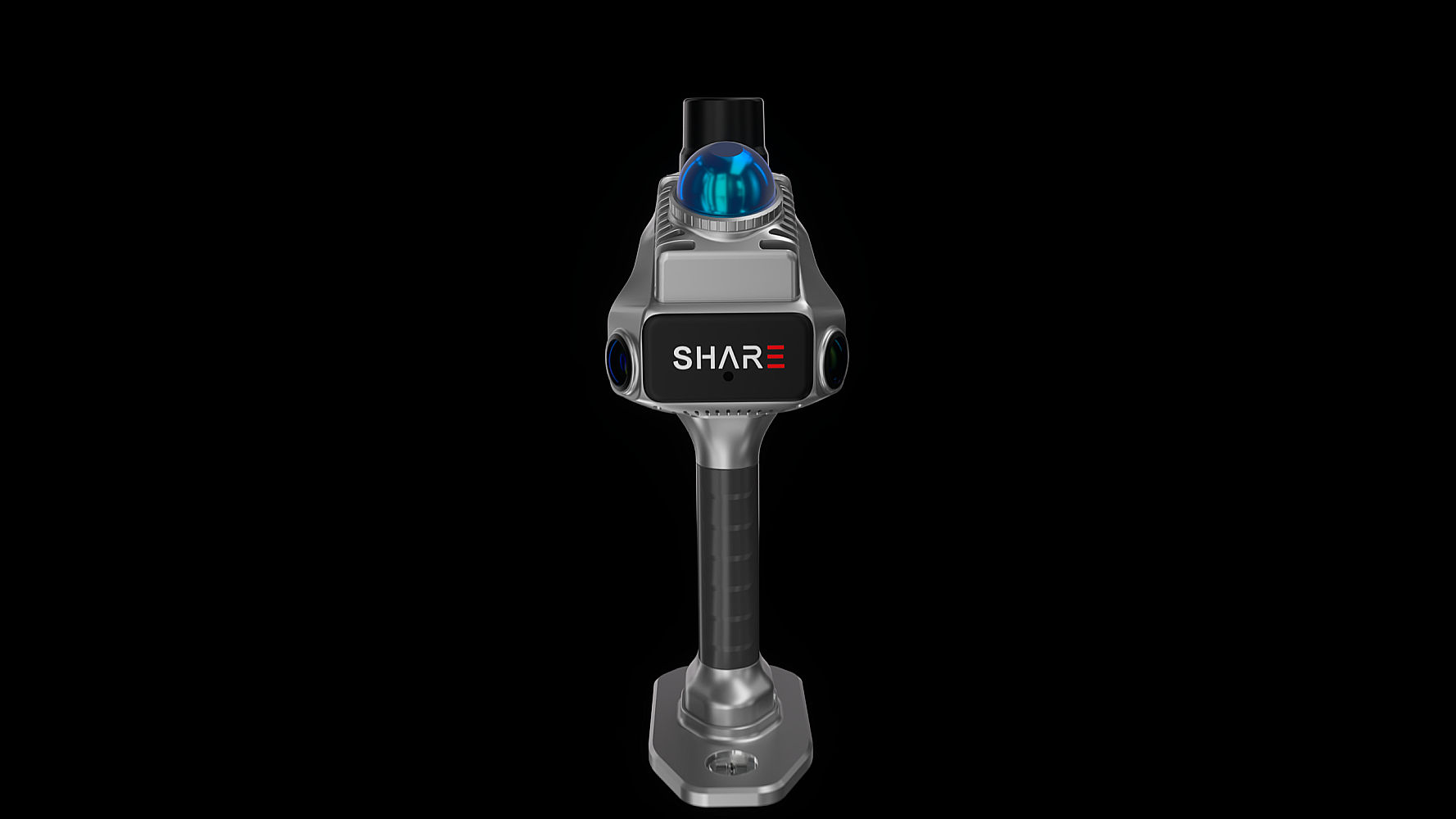

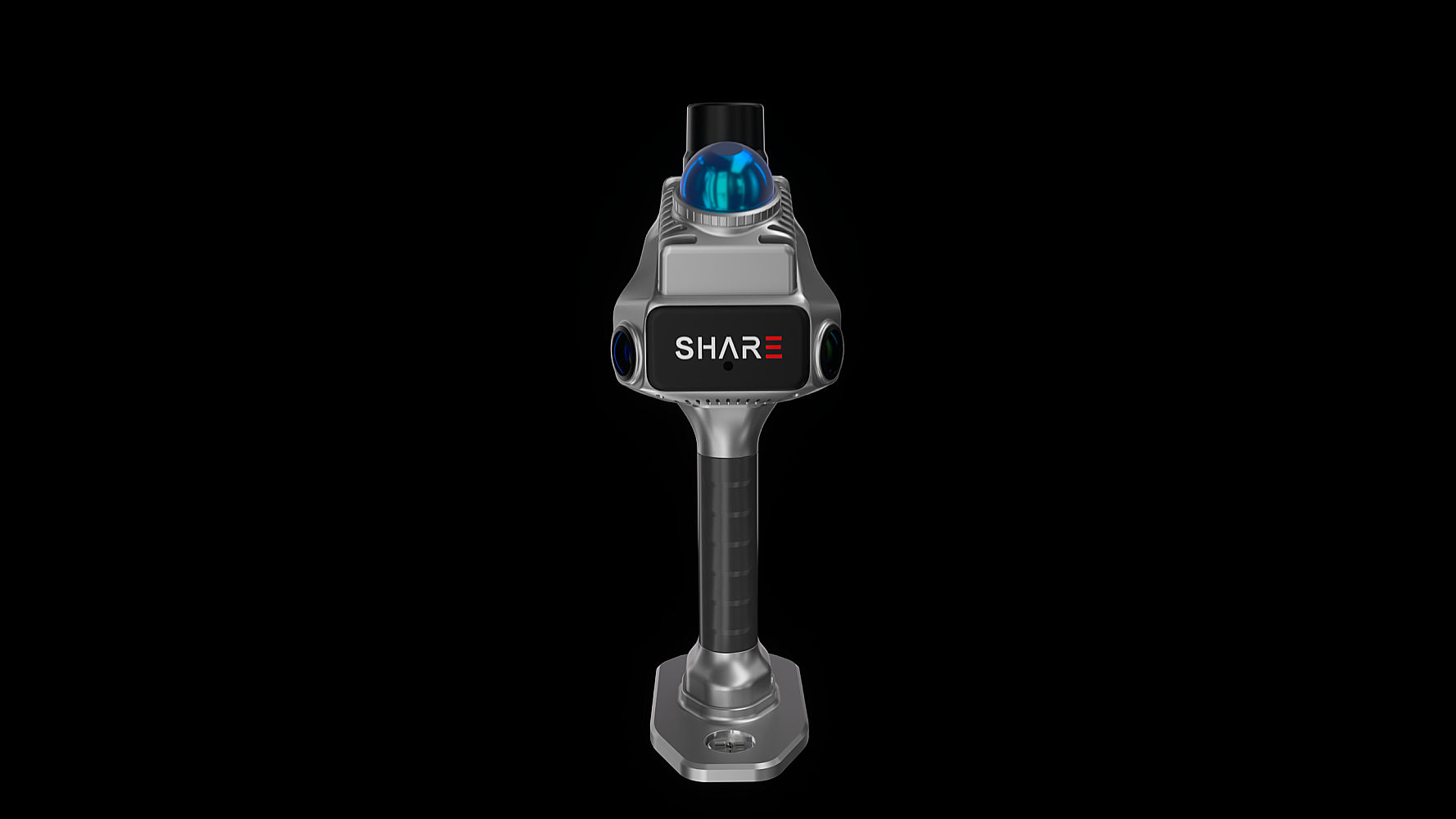

All-in-one lightweight body
Type-C fast charge
Bluetooth+WiFi6
One-click direct connection
Aluminum alloy Material
Quick release
battery handle
Type-C/TF card
Data transfer
centering pole
New reinforced connection kit
The working time can be up to 150min
Brand new upgrade RTK antenna
Standard upgrade
Positioning plate
Product parameters
| Parameter item | Specification |
| Product name | SHARE SLAM S20 |
| size | 110.5*140*313.3mm |
| weight | 1079g |
| battery capacity | 45.36wh (3150mAh) |
| Single battery life | about 150 minutes |
| Charging method | TYPE-C interface; PD 30W fast charging |
| working temperature | -20℃~+50℃ |
| Storage temperature | -20℃~+60℃ |
| storage capacity | 256G (support expansion) |
| WIFI | WIFI6, support 2.4G/5G; 20 meters |
| Device interface | TF card/Type-C |
| Camera resolution | 16 million pixels ×2 |
| camera sensor | 13.13*8.76mm；一英寸 |
| Shutter mode | Mechanical shutter/Electronic shutter |
| Radar installation method | Tilt 25° to ground |
| Number of point clouds | 200,000 points/second |
| point cloud frequency | 10 Hz (typ.) |
| Measure distance | 0.1~40m@10% 反射率；0.1m~70m@80% 反射率 |
| RTK configuration | Built-in standard |
| RTK accuracy | Plane 0.8cm+1ppm; elevation 1.5cm+1ppm |
| point cloud thickness | Within 1cm |
| Processing method | Real-time solve / post-solve |
| absolute accuracy | Better than 5cm |
| relative accuracy | Better than 1cm |
